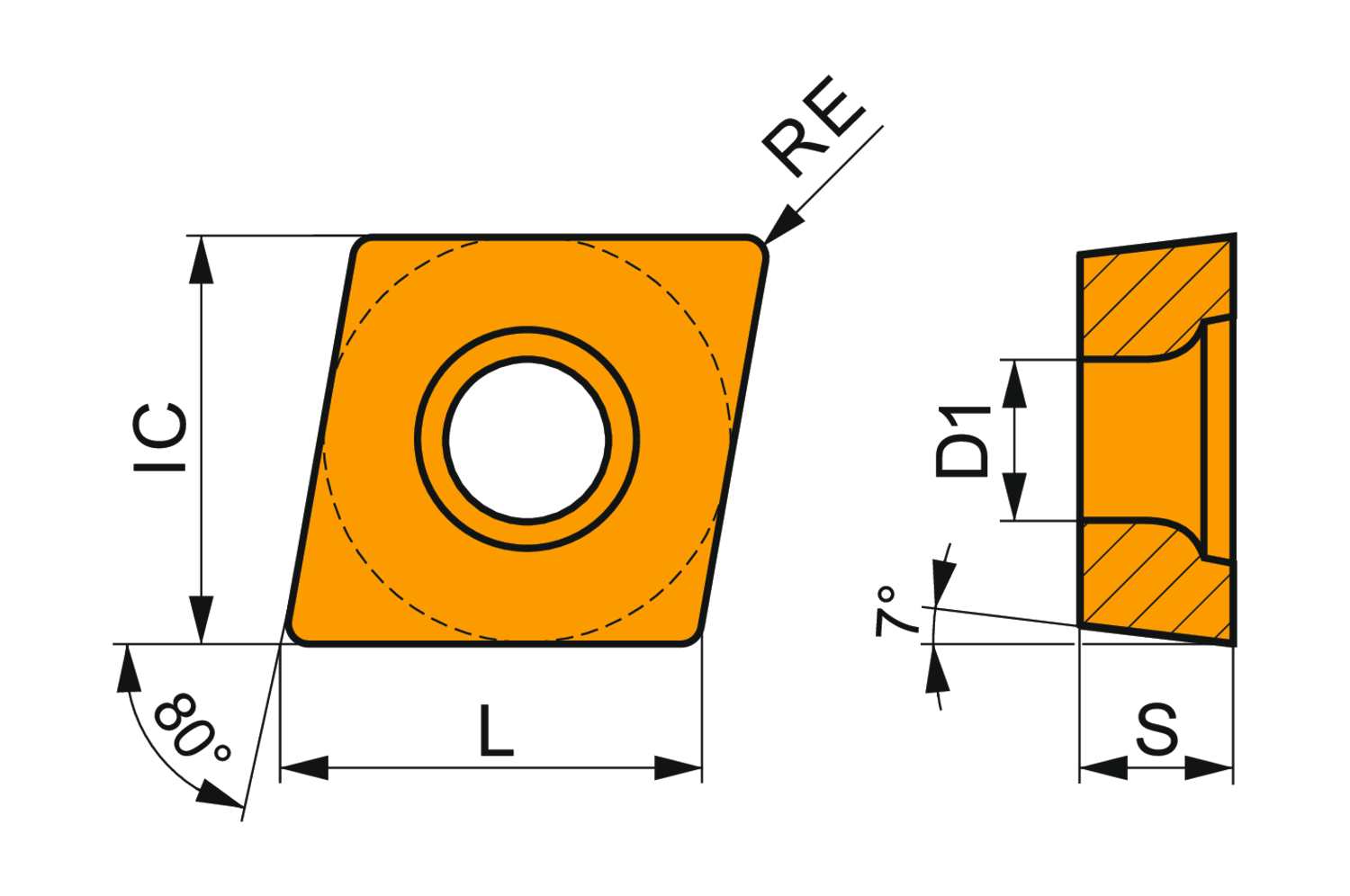

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M25, for fine to medium machining of stainless-steels
- Product Name ISO: CCMT 060208E-FM:T7325
- Ordering Code ANSI: CCMT 21.52-FM:T7325
- EDP Number: 7156165
- Coating: T7325
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.079 |
| Insert Geometry | Positive |
| Coating | T7325 |
