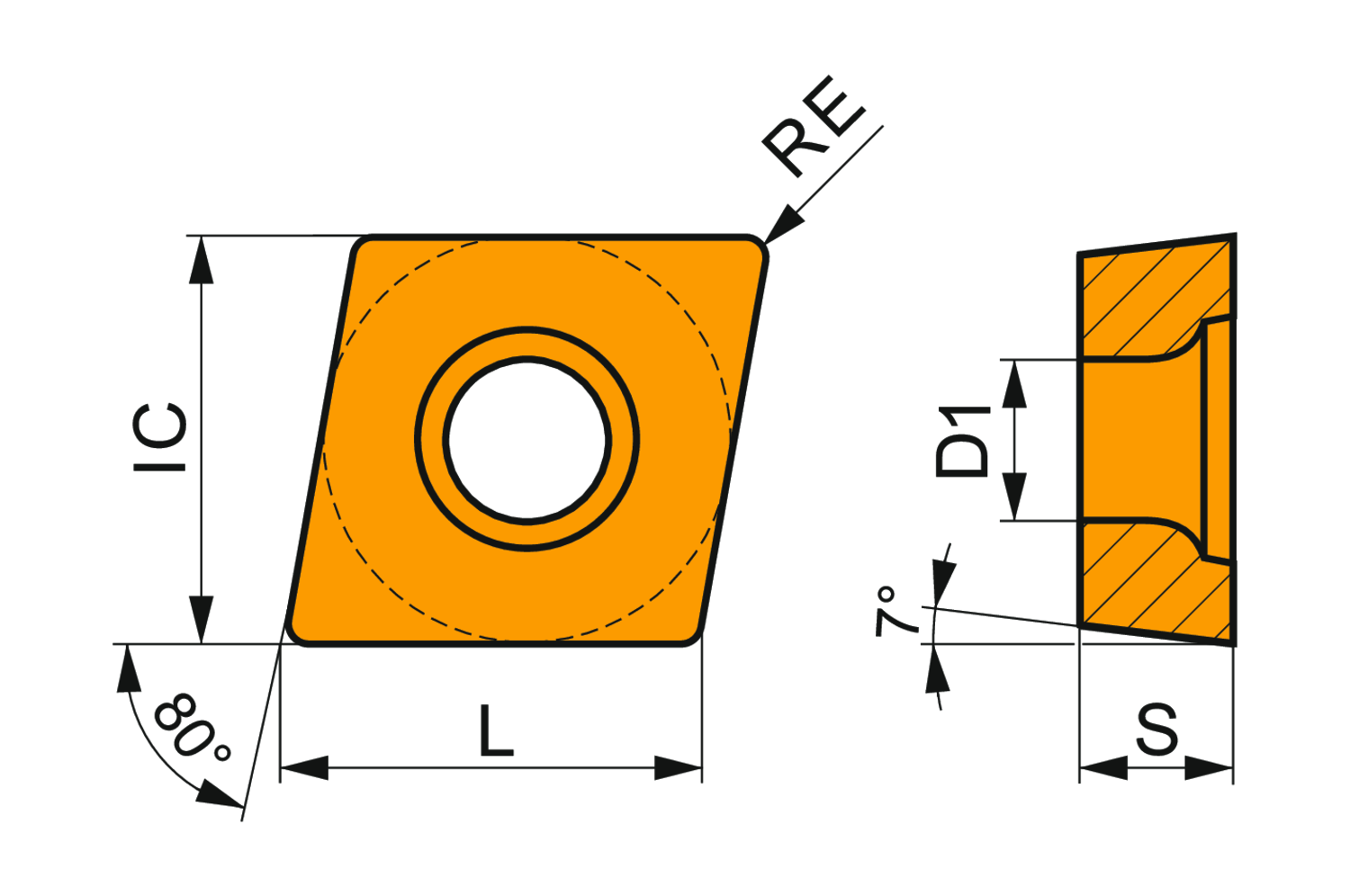

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker UR, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO range K05 - K25, for fine to heavy machining of cast-irons
- Product Name ISO: CCMT 060204E-UR:T8315
- Ordering Code ANSI: CCMT 21.51-UR:T8315
- EDP Number: 6753574
- Coating: T8315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.079 |
| Insert Geometry | Positive |
| Coating | T8315 |
