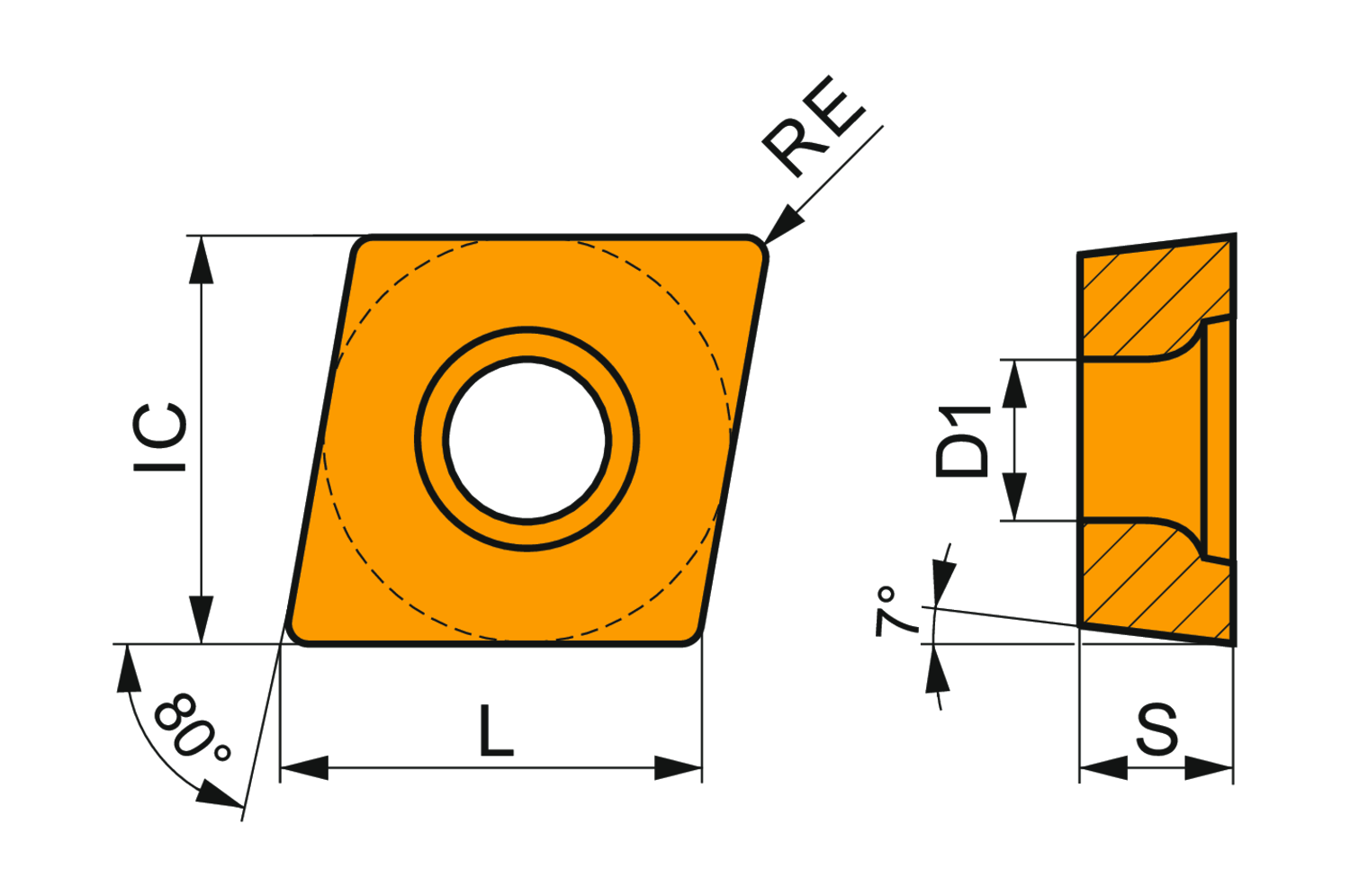

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 16mm, 1/4" thick nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM3, in grade T8430, a PVD coated fine grained WC-Co carbide, for fine to heavy machining
- Product Name ISO: CCMT 09T304E-NF2:T9415
- Ordering Code ANSI: CCMT 32.51-NF2:T9415
- EDP Number: 8345889
- Coating: T9415
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.97 |
| Insert Geometry | Positive |
| Coating | T9415 |
