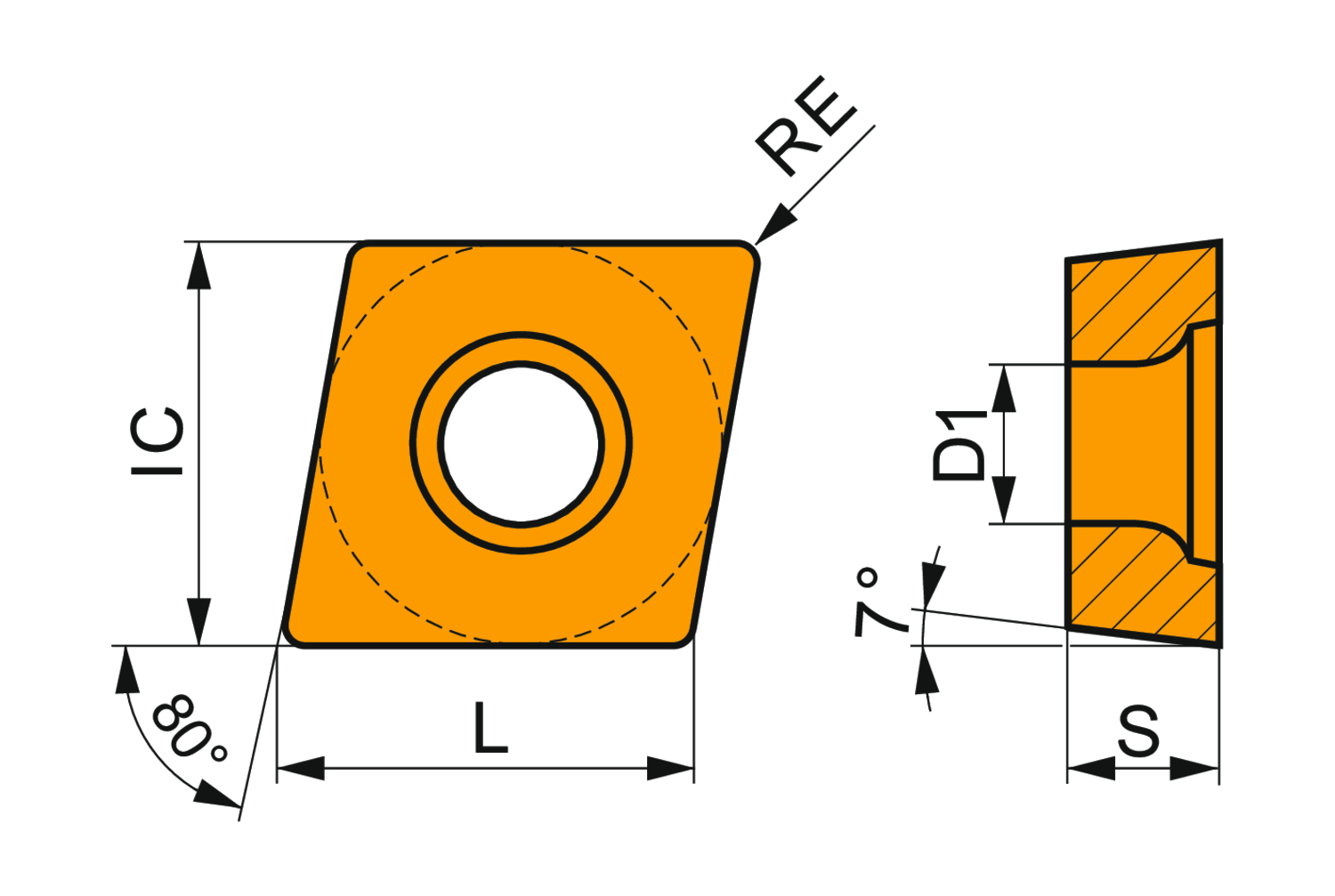

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 5/16", 1/8" thick, 1/128" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker SF3, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01 - M15/N05 - N20 and S01 - S15, for fine to medium machining of stainless-steels, non-ferrous metals and super-alloys
- Product Name ISO: CCGT 080302E-SF3:T6310
- Ordering Code ANSI: CCGT 2.520.5-SF3:T6310
- EDP Number: 7168529
- Coating: T6310
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Corner Radius (Mm.) | 0.2 |
| Fixing Hole Diameter (Mm.) | 3.4 |
| Inscribing Circle Dia. (Mm.) | 7.94 |
| Insert Thickness (Mm.) | 3.43 |
| Max Depth of Cut (In.) | 0.079 |
| Insert Geometry | Positive |
| Coating | T6310 |
