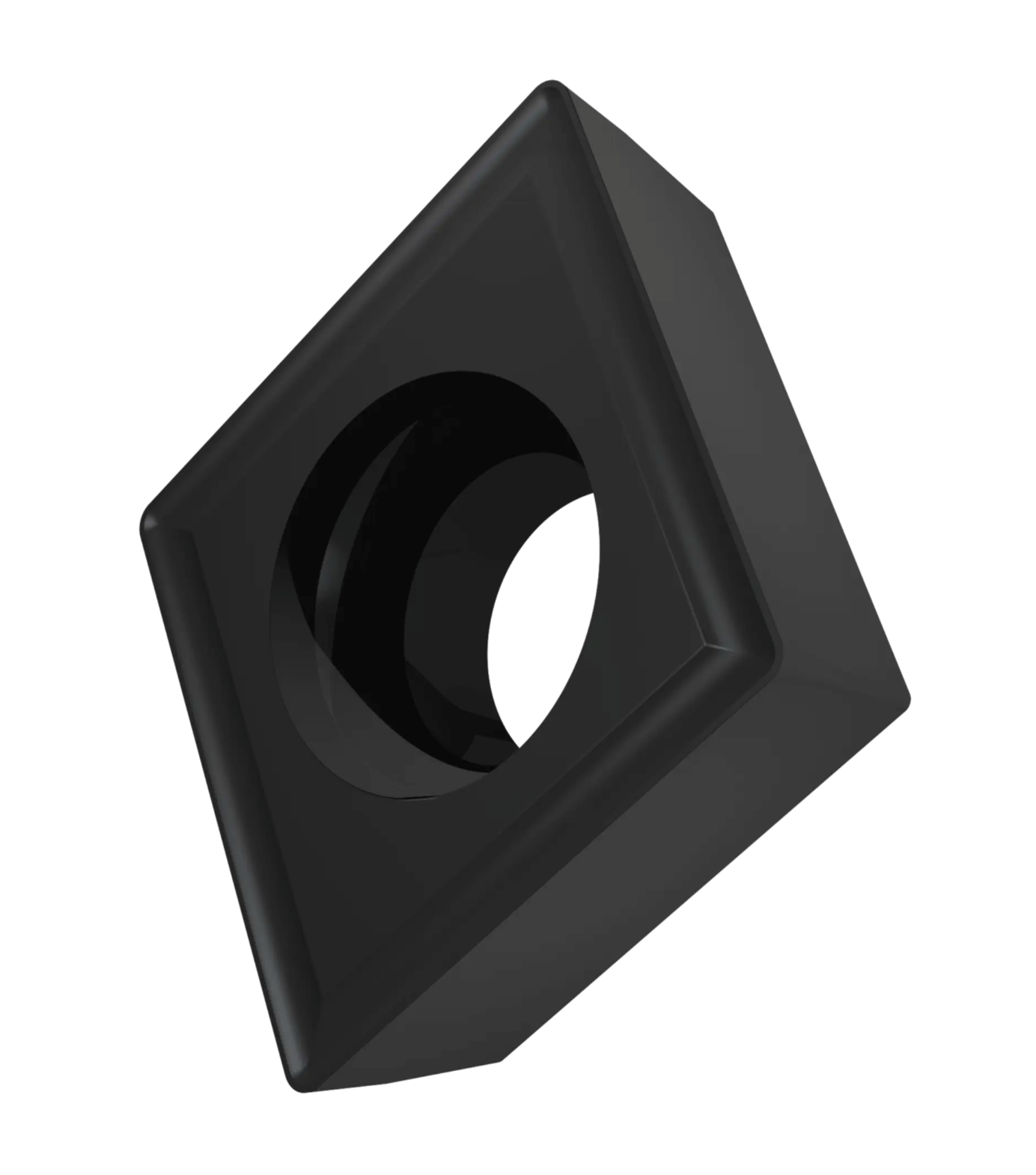

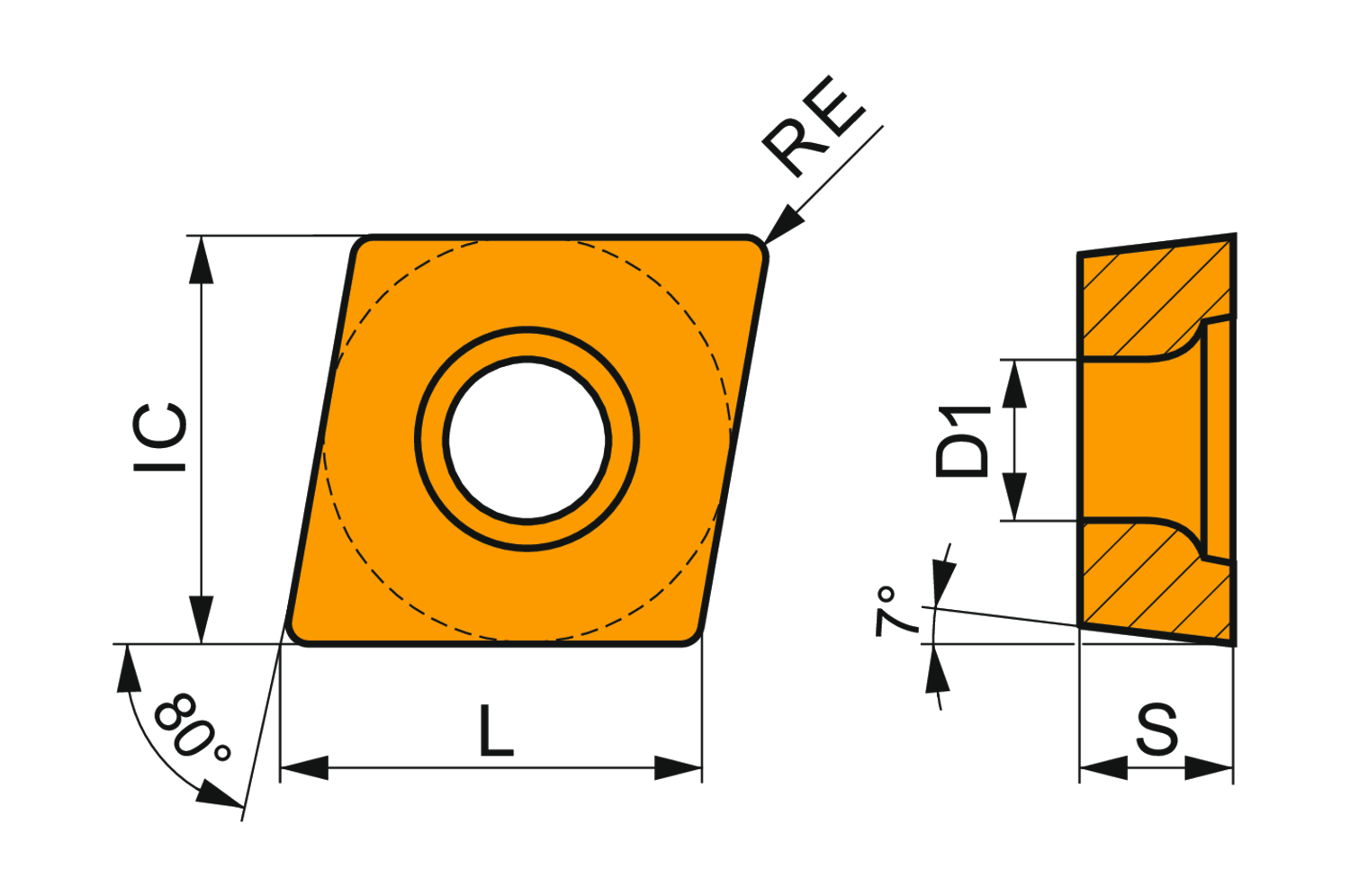

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RF with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15 -P35, for fine to heavy machining of steels

• Product Name ISO: CCMT 09T304E-RF:T9325
• Ordering Code ANSI: CCMT 32.51-RF:T9325
• EDP Number: 8014936
• Coating: T9325
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
