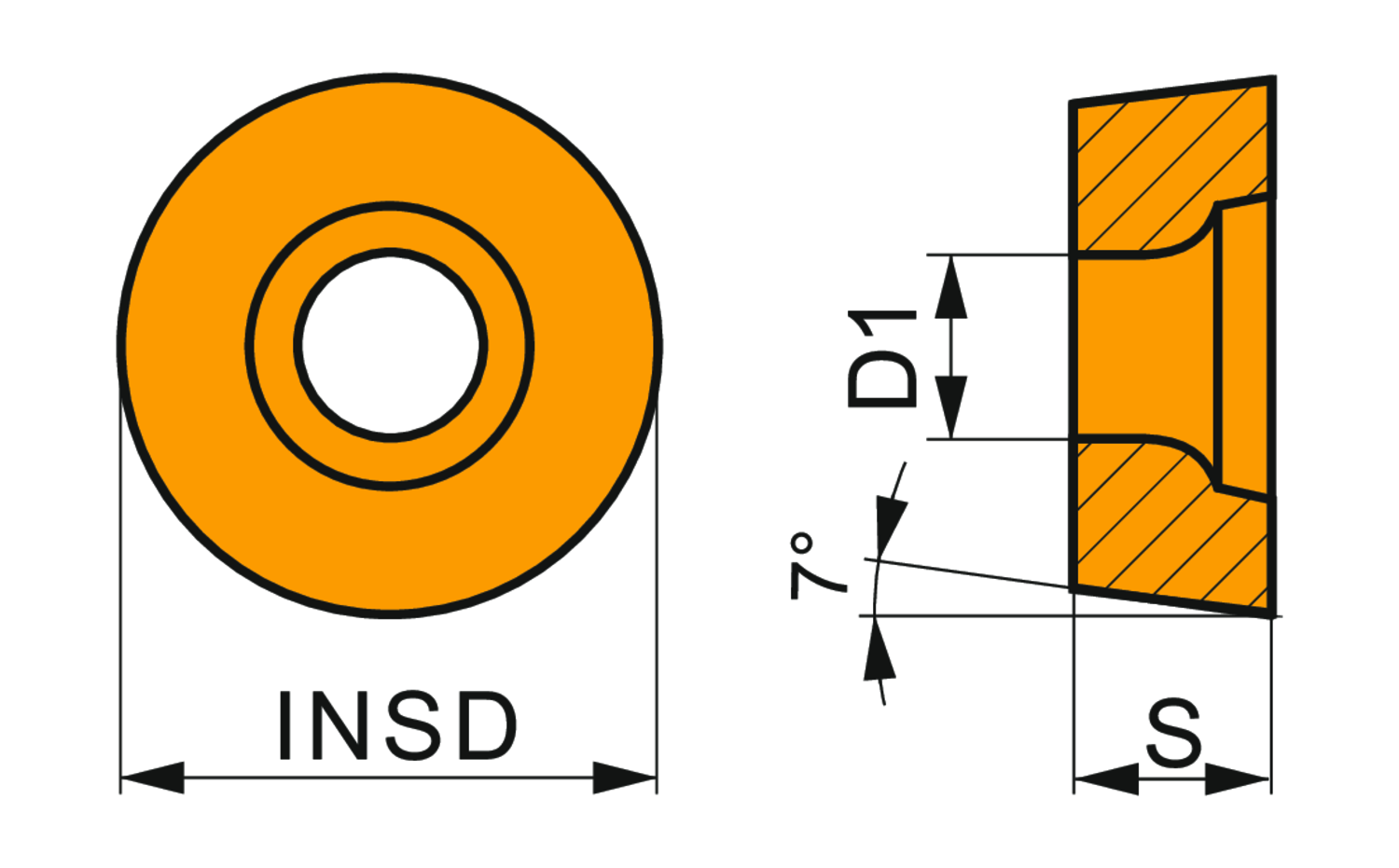

Single-sided positive turning insert, round with 7° clearance, a diameter of 10mm, 3.97mm thick, indexing accuracy according to ISO-tolerance class-M, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for fine to medium machining of cast-irons
- Product Name ISO: RCMW 10T3MO:T5315
- Ordering Code ANSI: RCMW 10T3MO:T5315
- EDP Number: 6922817
- Coating: T5315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.5 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Insert Dia. (Mm.) | 10 |
| Insert Thickness (Mm.) | 3.97 |
| Max Depth of Cut (In.) | 0.098 |
| Insert Geometry | Positive |
| Coating | T5315 |
