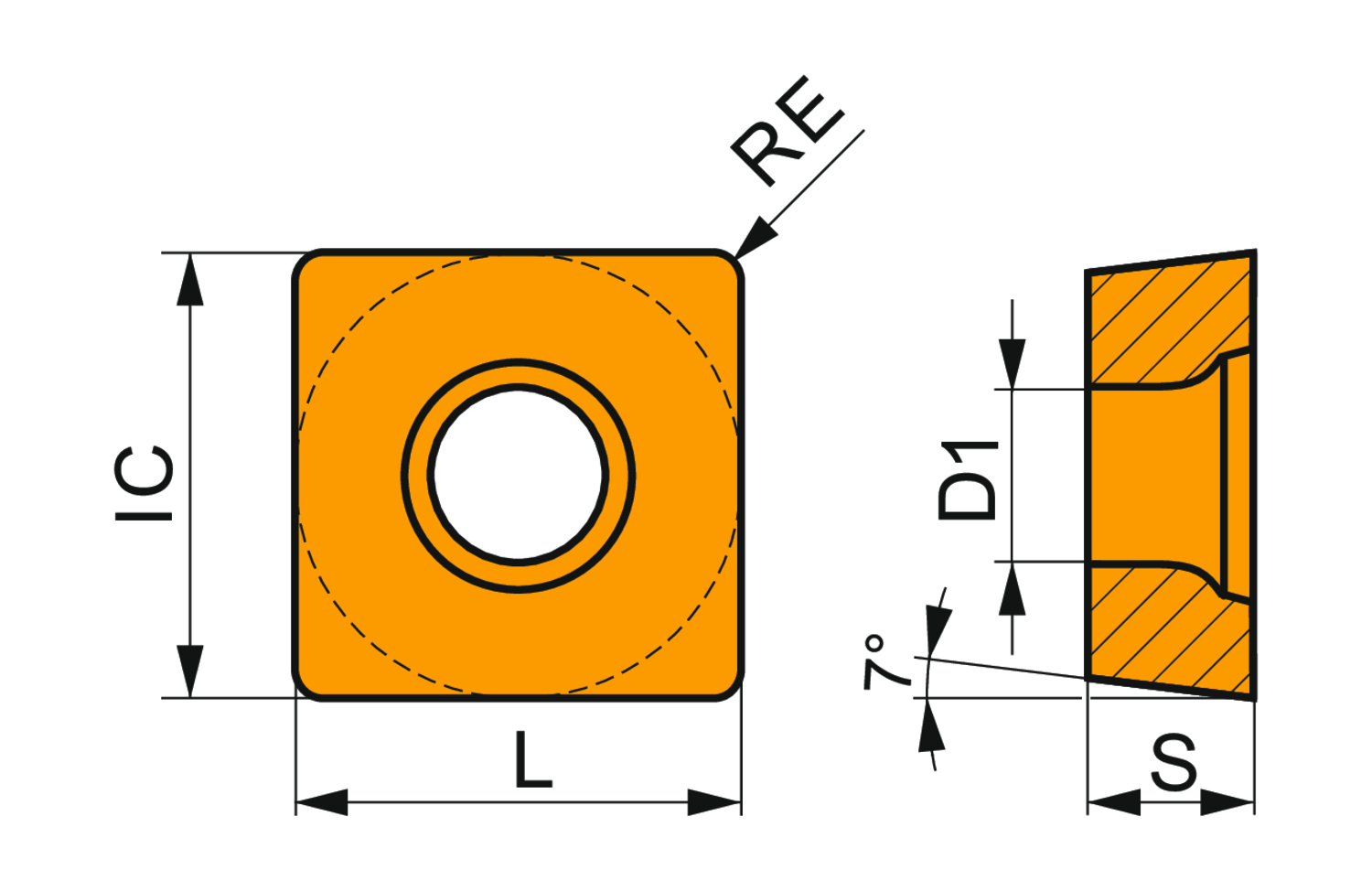

Single-sided positive turning insert, square with 7° clearance, inscribed circle diameter of 1/2", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RF, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide, for fine to heavy machining
- Product Name ISO: SCMT 120408E-RF:T7335
- Ordering Code ANSI: SCMT 432-RF:T7335
- EDP Number: 6756043
- Coating: T7335
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4.5 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.5 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.177 |
| Insert Geometry | Positive |
| Coating | T7335 |
