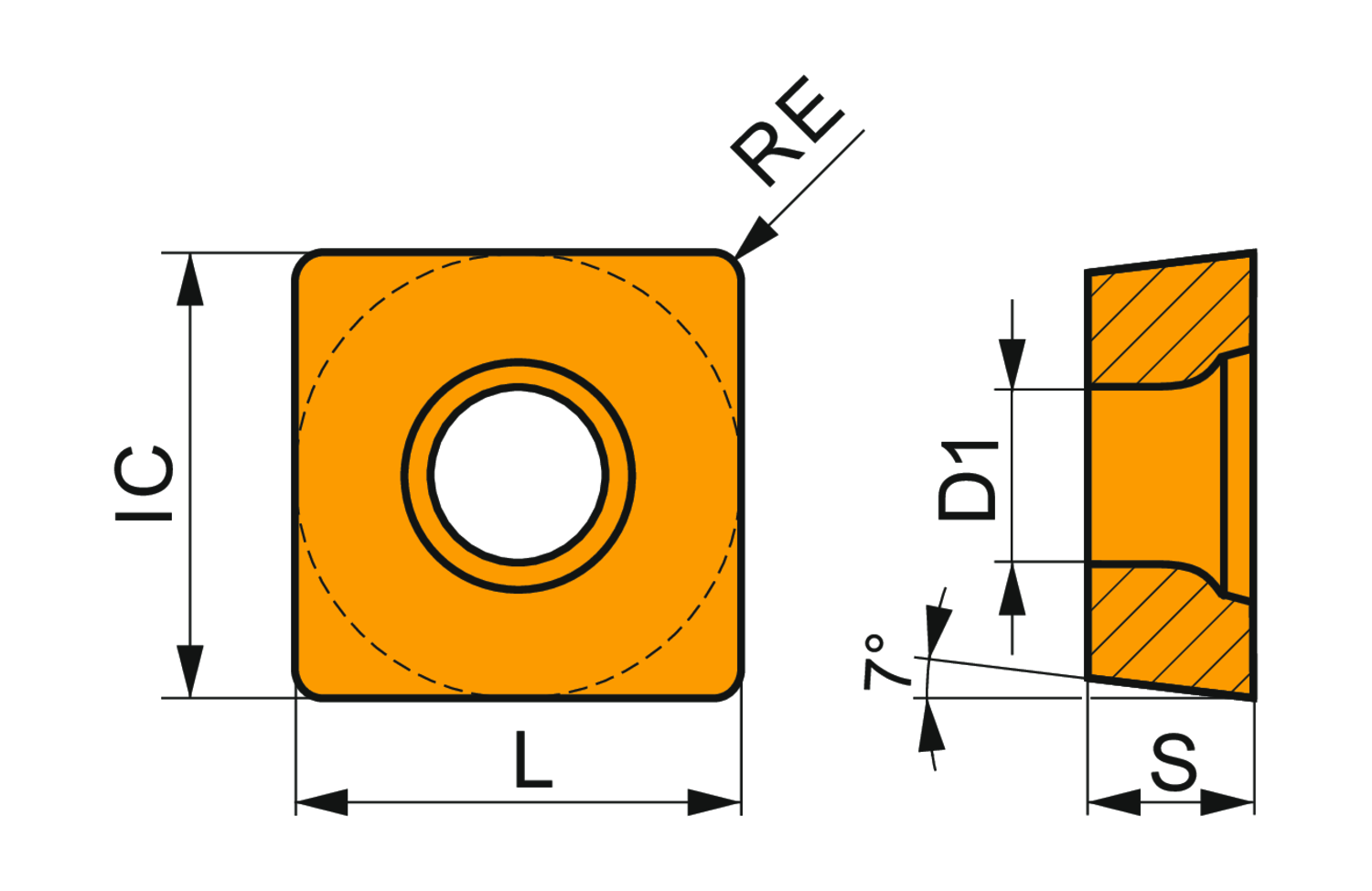

Single-sided positive turning insert, square with 7° clearance, inscribed circle diameter of 1", 3/8" thick, 3/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker OR, in grade T9226, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for heavy to extra heavy machining of steels and stainless-steels
- Product Name ISO: SCMT 250924E-OR:T9226
- Ordering Code ANSI: SCMT 866-OR:T9226
- EDP Number: 6931863
- Coating: T9226
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 16 |
| Corner Radius (Mm.) | 2.4 |
| Fixing Hole Diameter (Mm.) | 8.7 |
| Inscribing Circle Dia. (Mm.) | 25.4 |
| Insert Thickness (Mm.) | 9.525 |
| Max Depth of Cut (In.) | 0.63 |
| Insert Geometry | Positive |
| Coating | T9226 |
