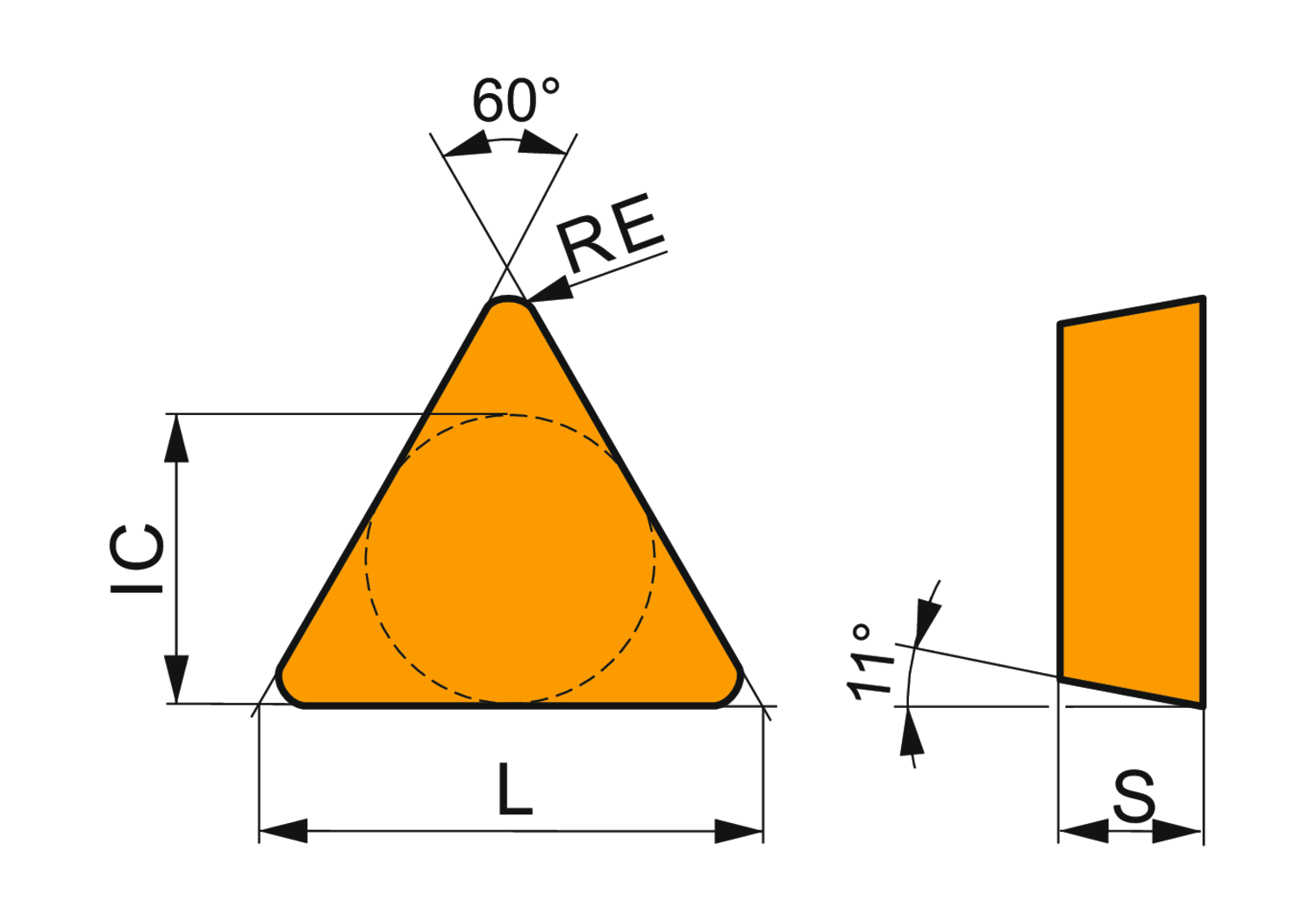

Single-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 1/4", 1/8" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker 46, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20-P45, for fine to medium machining of steels
- Product Name ISO: TPMR 110308E-46:T9335
- Ordering Code ANSI: TPMR 222-46:T9335
- EDP Number: 6755003
- Coating: T9335
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Corner Radius (Mm.) | 0.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.118 |
| Insert Geometry | Positive |
| Coating | T9335 |
