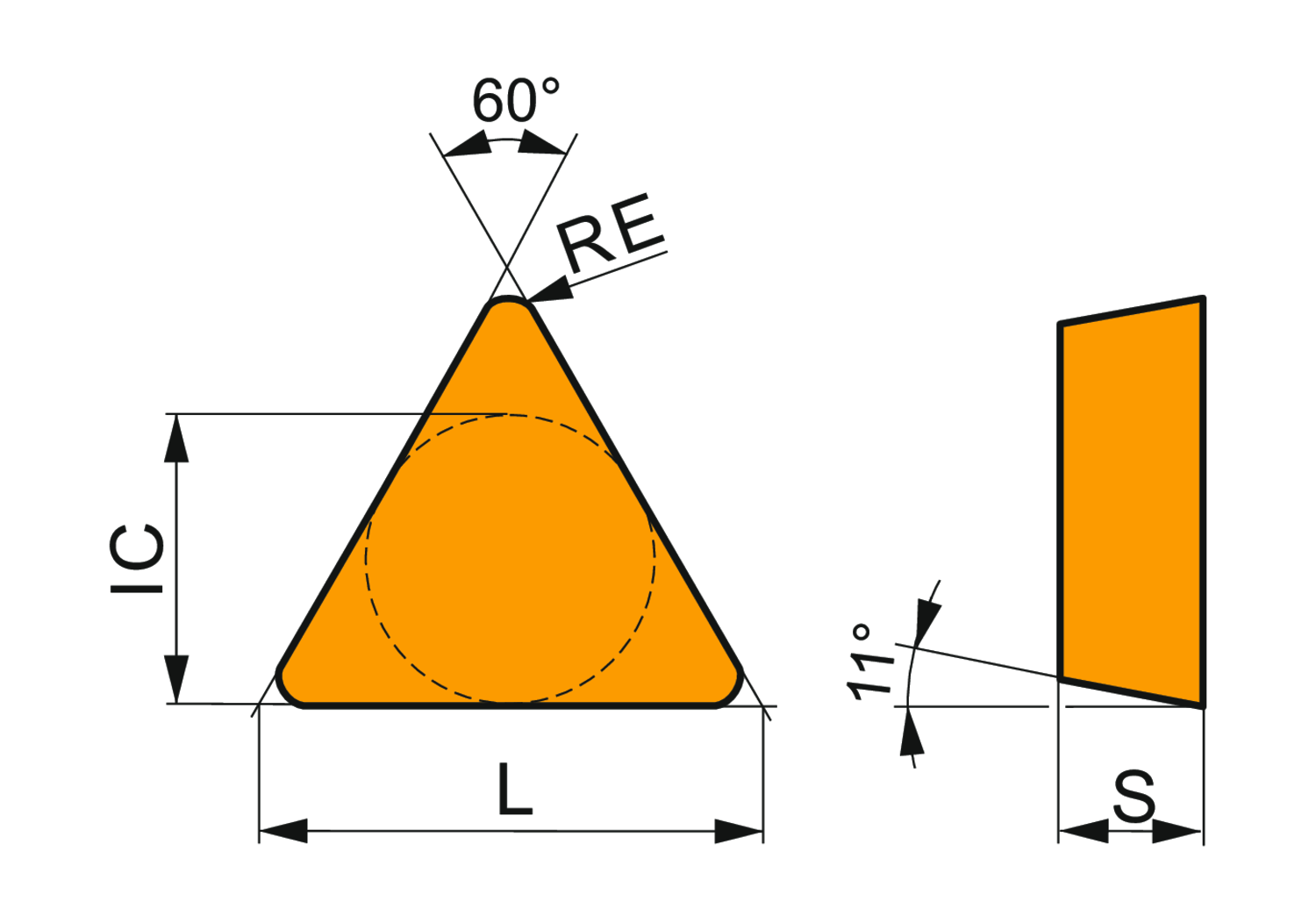

Single-sided positive turning insert, triangular with 11° clearance, inscribed circle diameter of 3/8", 1/8" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker 47, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20-P45, for fine to medium machining of steels
- Product Name ISO: TPMR 160304E-47:T9335
- Ordering Code ANSI: TPMR 321-47:T9335
- EDP Number: 6755004
- Coating: T9335
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4 |
| Corner Radius (Mm.) | 0.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.157 |
| Insert Geometry | Positive |
| Coating | T9335 |
