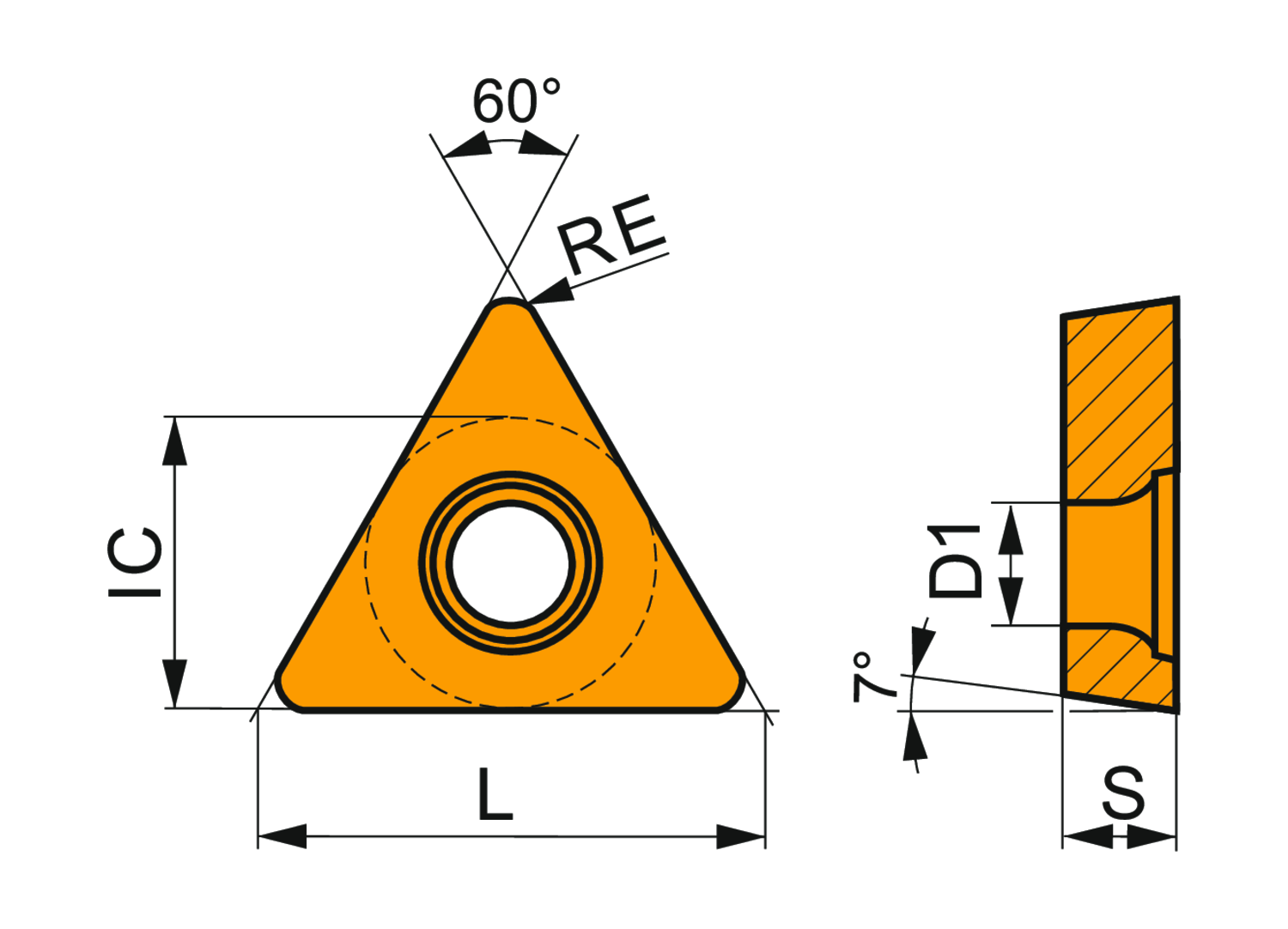

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/128" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker SI, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO range M05-M20, for fine to medium machining of stainless-steels with a right handed turning tool
- Product Name ISO: TCGT 110202ER-SI:T8315
- Ordering Code ANSI: TCGT 21.50.5R-SI:T8315
- EDP Number: 6922733
- Coating: T8315
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.6 |
| Corner Radius (Mm.) | 0.2 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.063 |
| Insert Geometry | Positive |
| Coating | T8315 |
