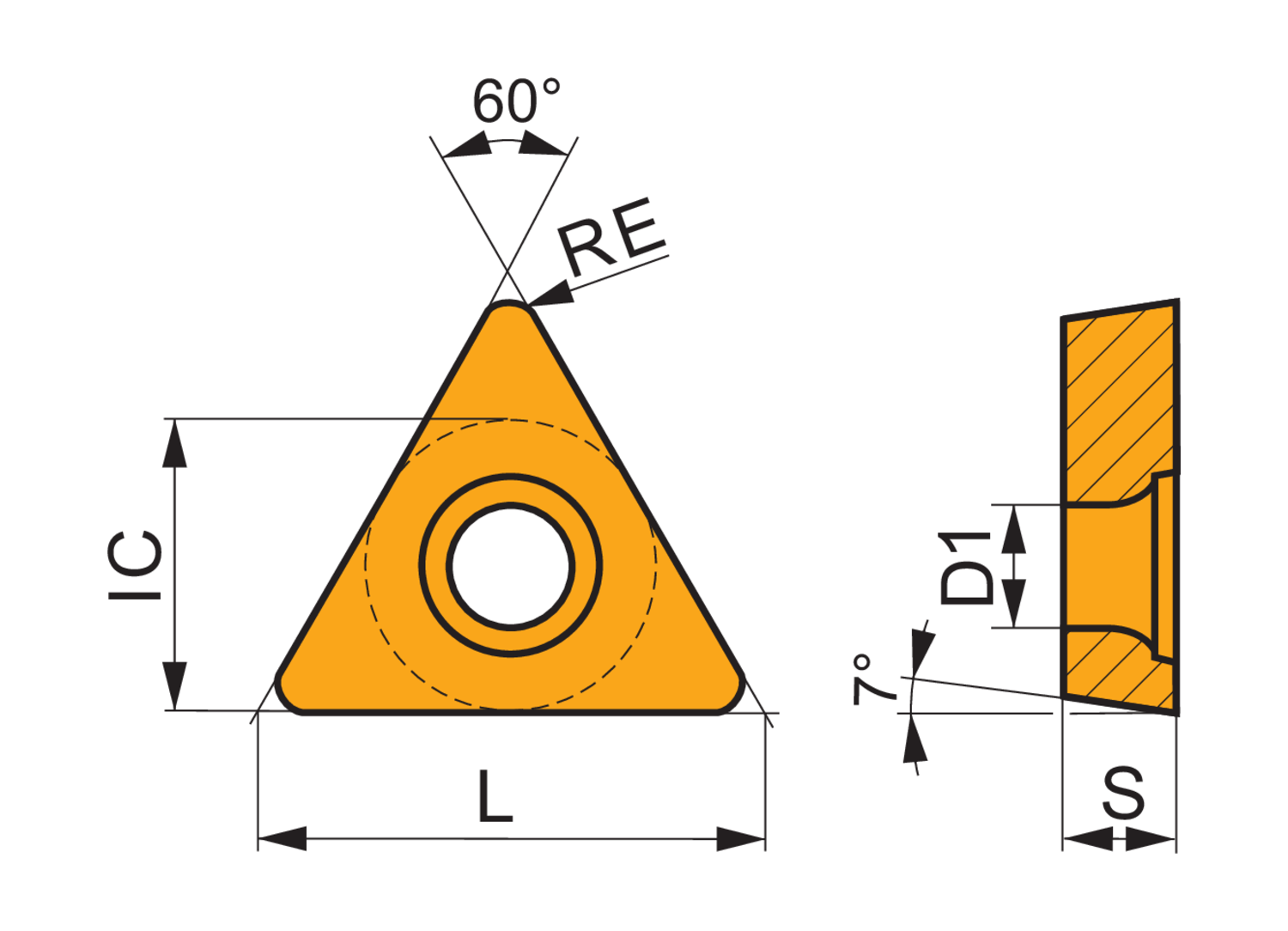

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 5/32", 5/64" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FF2, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for fine to medium machining of steels
- Product Name ISO: TCMT 06T104E-FF2:T9325
- Ordering Code ANSI: TCMT 1.21.21-FF2:T9325
- EDP Number: 6756101
- Coating: T9325
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.2 |
| Inscribing Circle Dia. (Mm.) | 3.97 |
| Insert Thickness (Mm.) | 1.98 |
| Max Depth of Cut (In.) | 0.079 |
| Insert Geometry | Positive |
| Coating | T9325 |
