Single-sided turning insert, round 7° clearance, a diameter of 6.35mm, 6.35mm thick, indexing accuracy according to ISO-tolerance class-G, cutting edges with double facet T-land -15°/1.5mm, in grade TC100, an uncoated ceramic within ISO range K01-K15, for high-speed machining of cast-irons
- Product Name ISO: RCGX 060600 K15015:TC100
- Ordering Code ANSI: RCGX 060600 K15015:TC100
- EDP Number: 6755435
- Coating: TC100
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.7 |

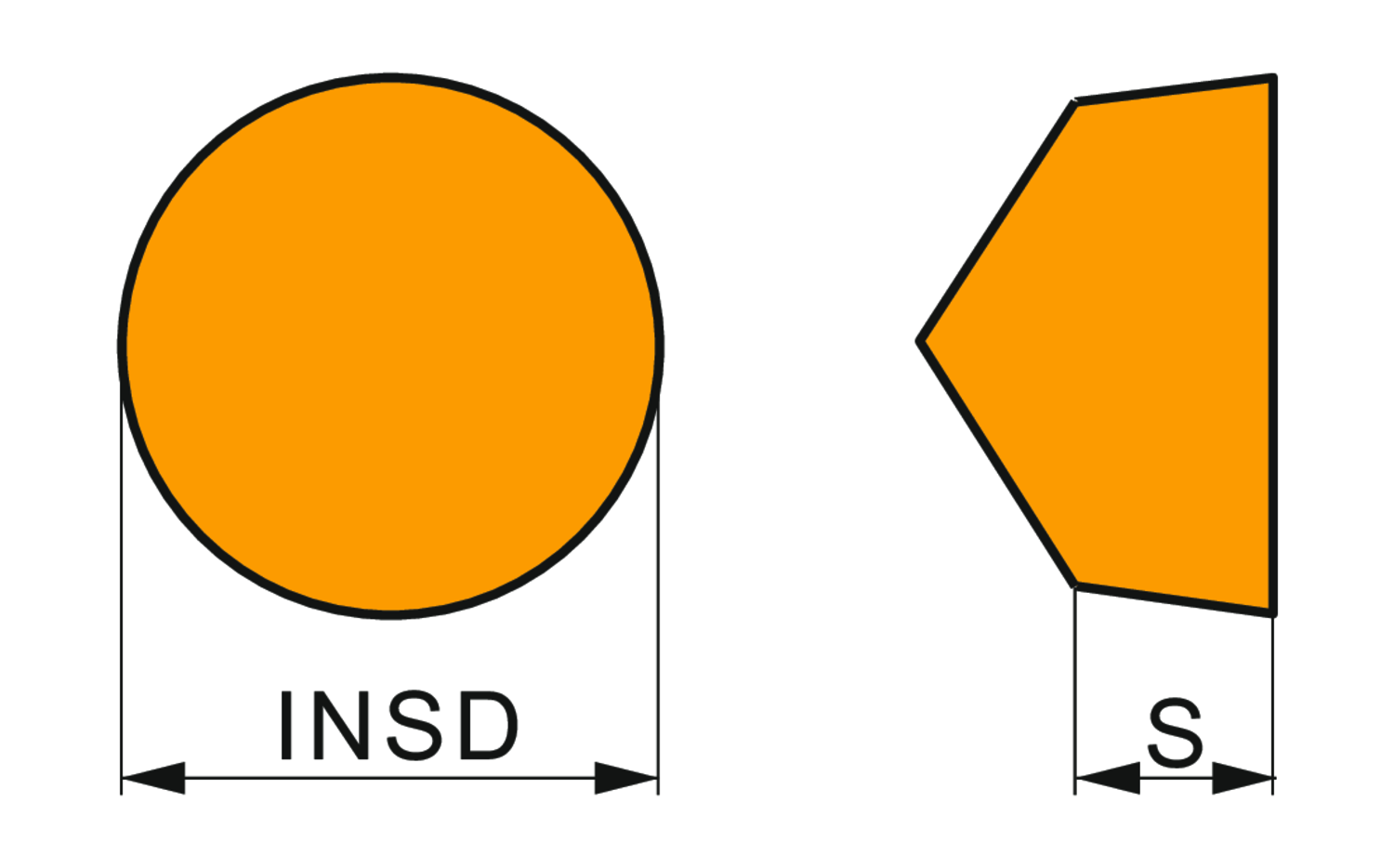

| Insert Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.067 |
| Insert Geometry | Positive |
| Coating | TC100 |
