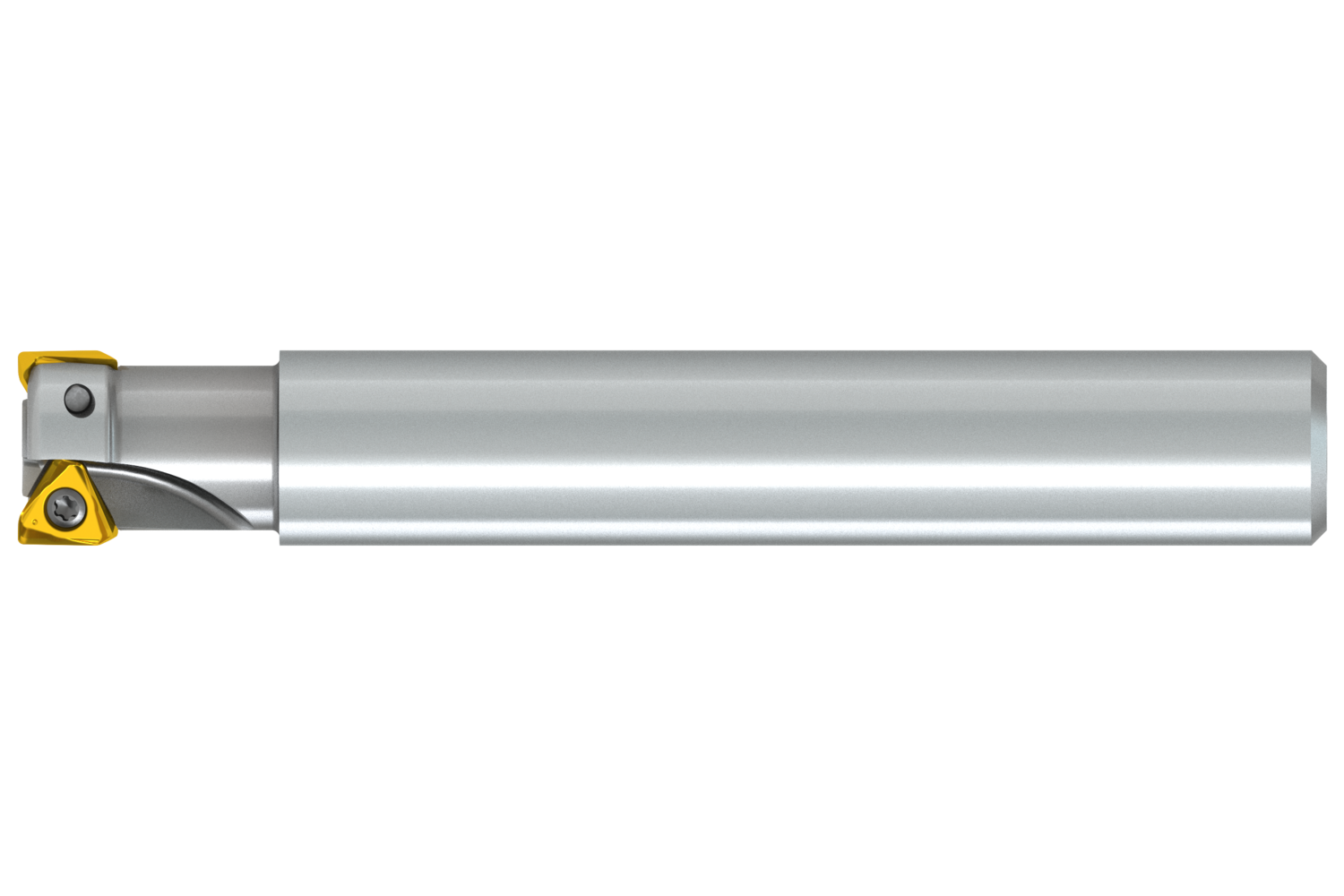

Shoulder face mill with double negative geometry which utilises 2 of TNGX 1606.. double-sided inserts, cutting diameter 1.000" with 90° approach angle and parallel shank according to DIN 1835A, , through coolant for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes
- Product Name ISO: 100A2R130C100-ISTN16-C
- Ordering Code ANSI: 100A2R130C100-ISTN16-C
- EDP Number: 8052333
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

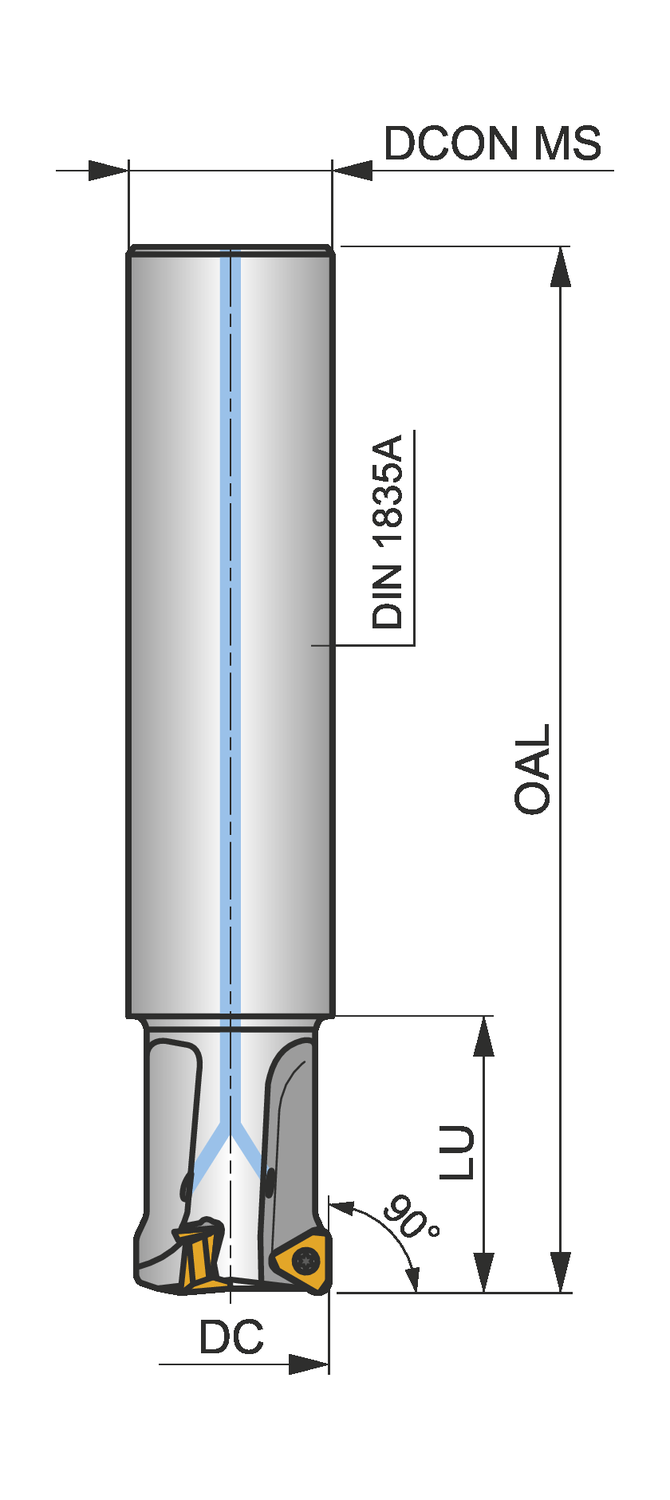

| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 25.4 |
| Cutting Diameter (In.) | 1 |
| Connection Diameter (Mm.) | 25.4 |
| Overall Length (Mm.) | 170 |
| Connection Diameter (In.) | 1 |
| Overall Length (In.) | 6.693 |
| Shank | Cylindrical Shank DIN 1835A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
