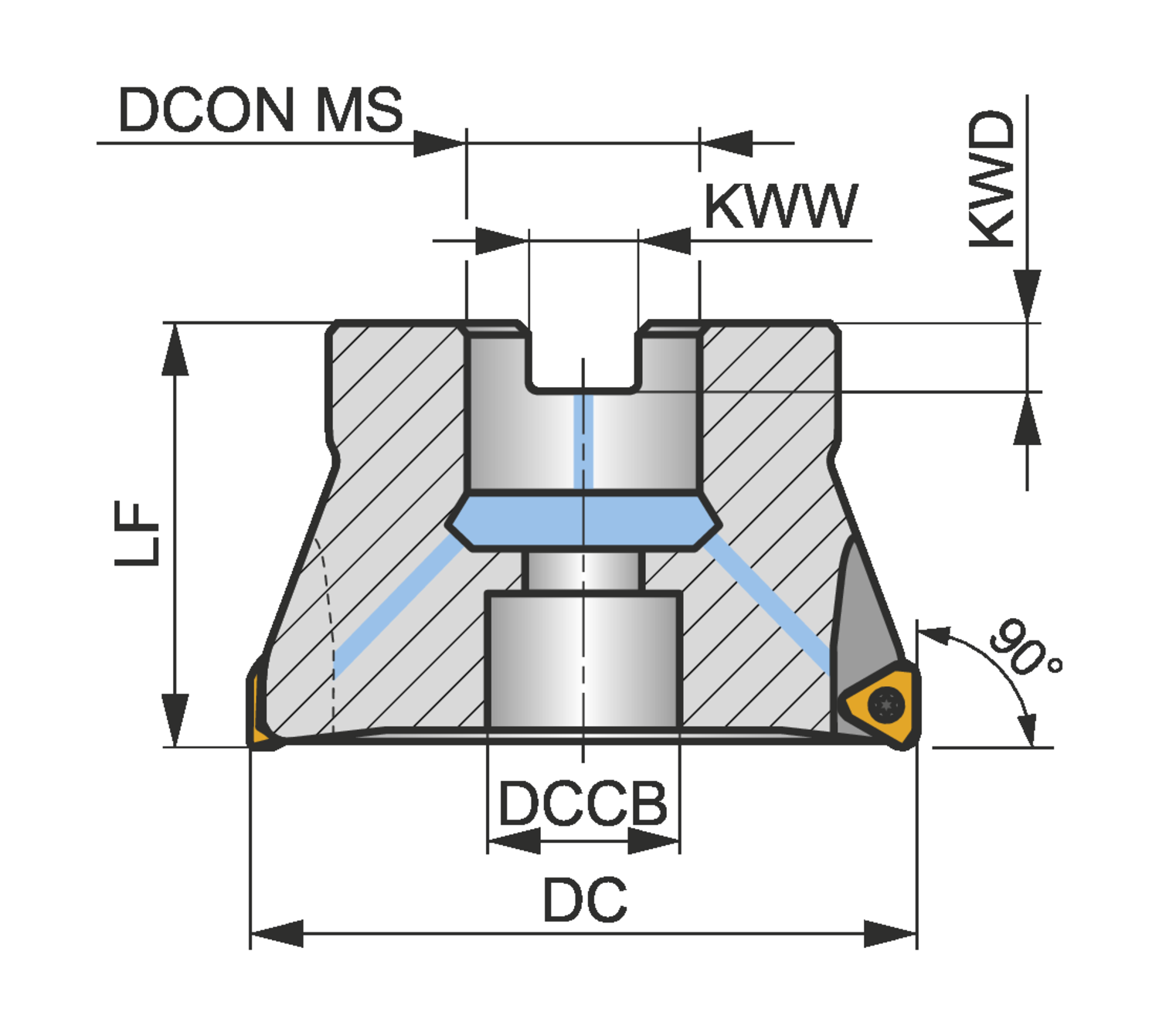

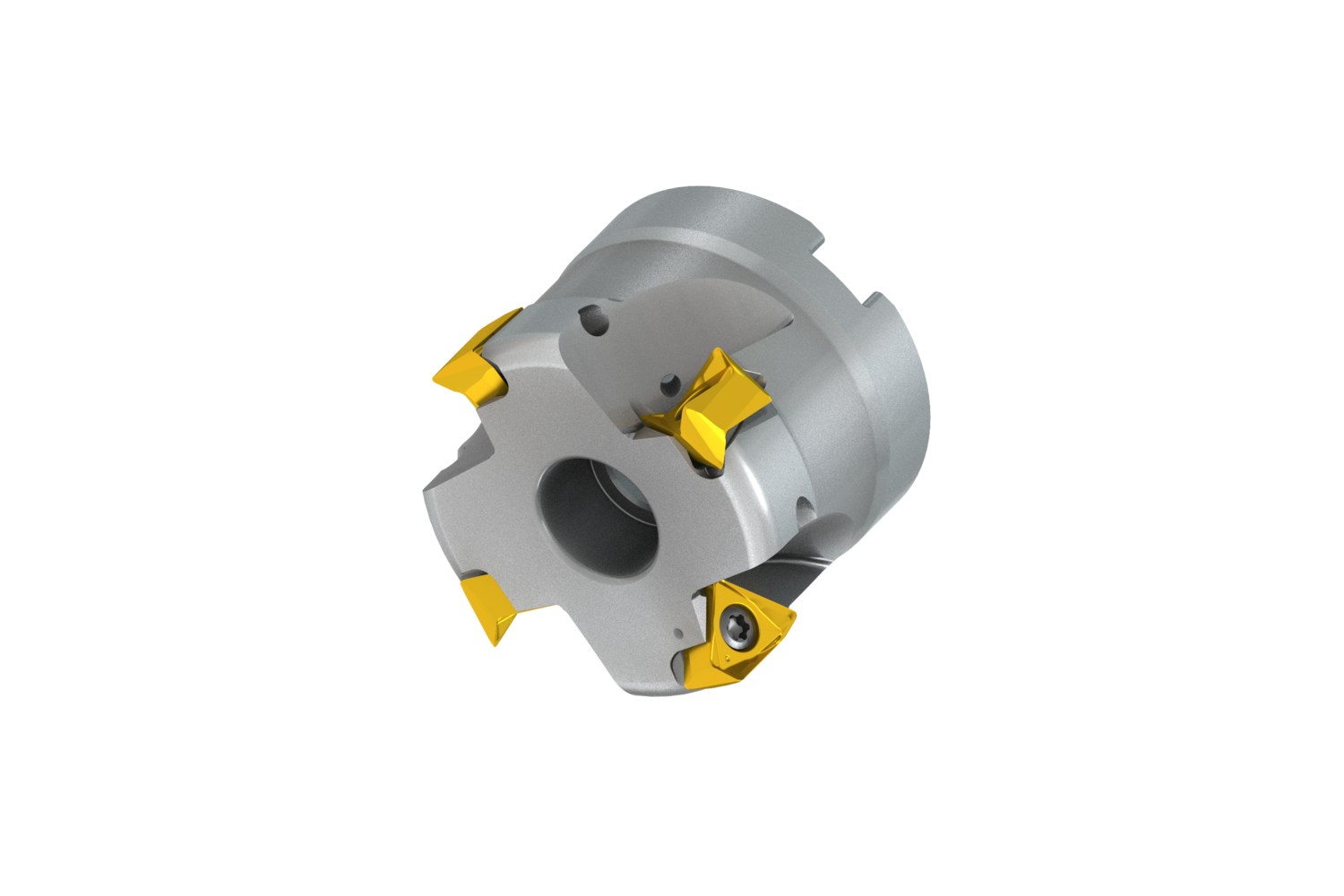

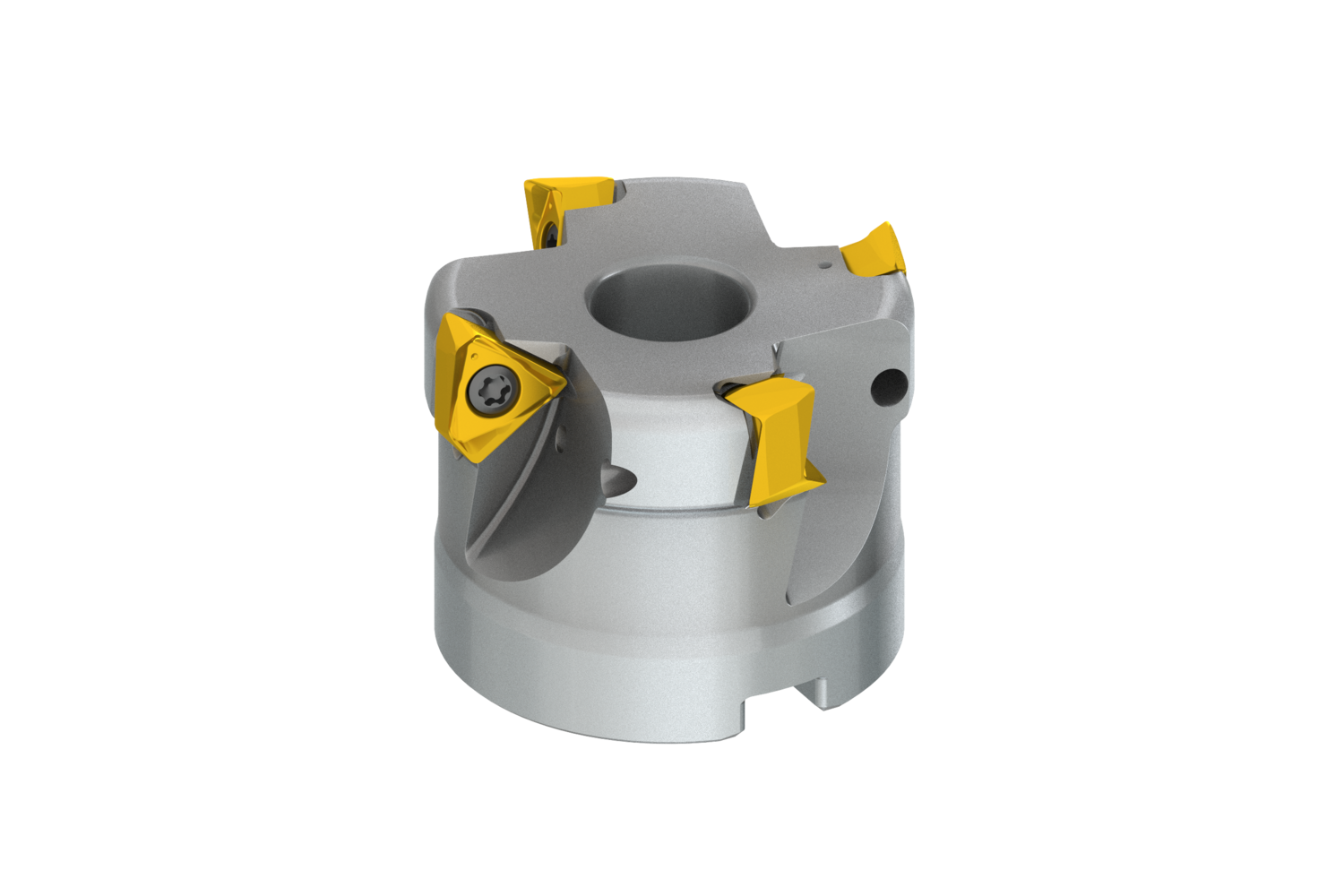

Shoulder face mill with double negative geometry which utilises 4 of TNGX 1606.. double-sided inserts, cutting diameter 2.000" with 90° approach angle and connection bore according to DIN 8030-A, , through coolant and differential pitch for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes
- Product Name ISO: 200A04R-IS90TN16-C
- Ordering Code ANSI: 200A04R-IS90TN16-C
- EDP Number: 8021163
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 50.8 |
| Cutting Diameter (In.) | 2 |
| Connection Diameter (Mm.) | 19.1 |
| Connection Diameter (In.) | 0.75 |
| Shank | Shell Mill DIN 8030 A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
There are no reviews yet
Customers who bought this item also bought

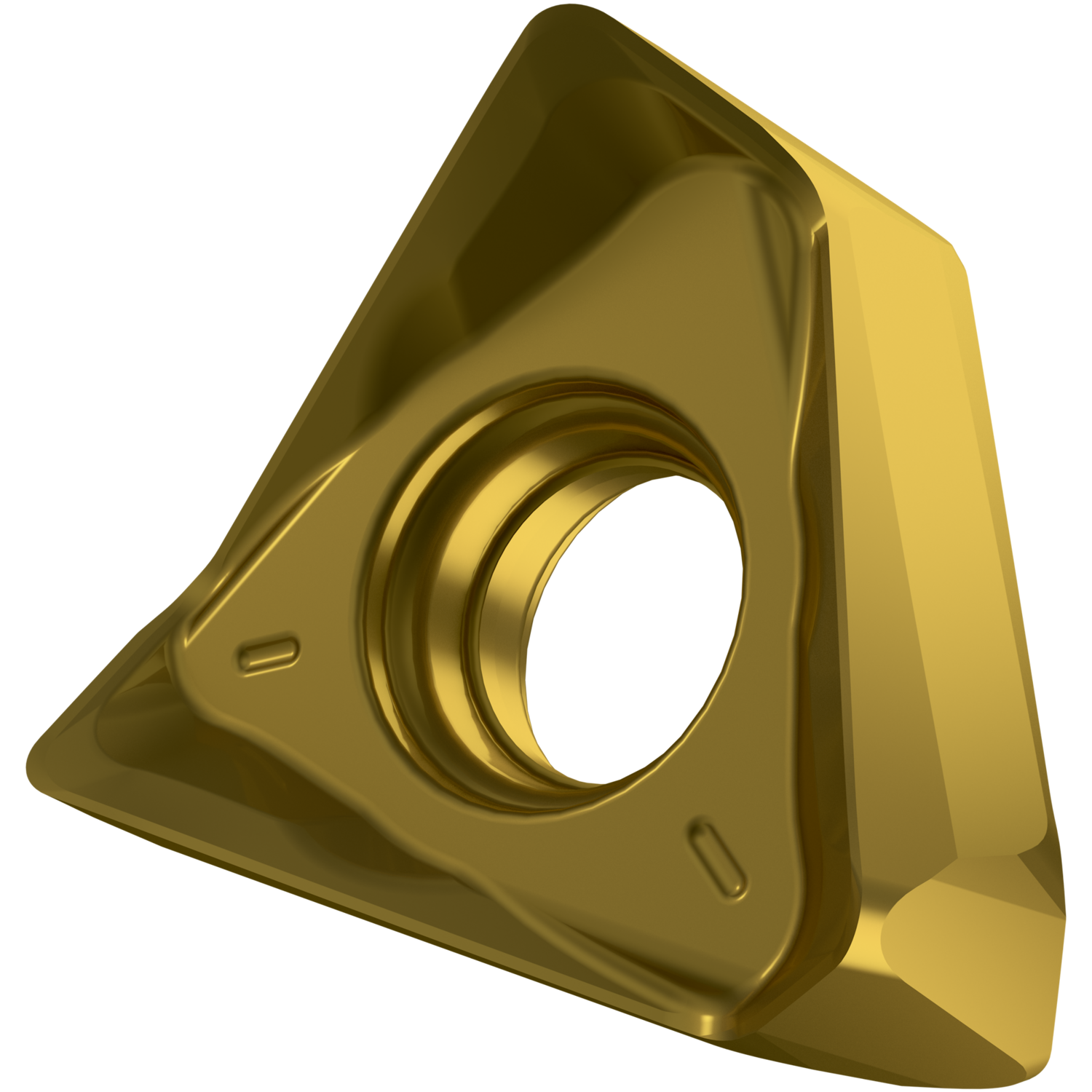

Milling Insert - Square Shoulder - TNGX 160608SR-M:M8340
$18.92 excl tax

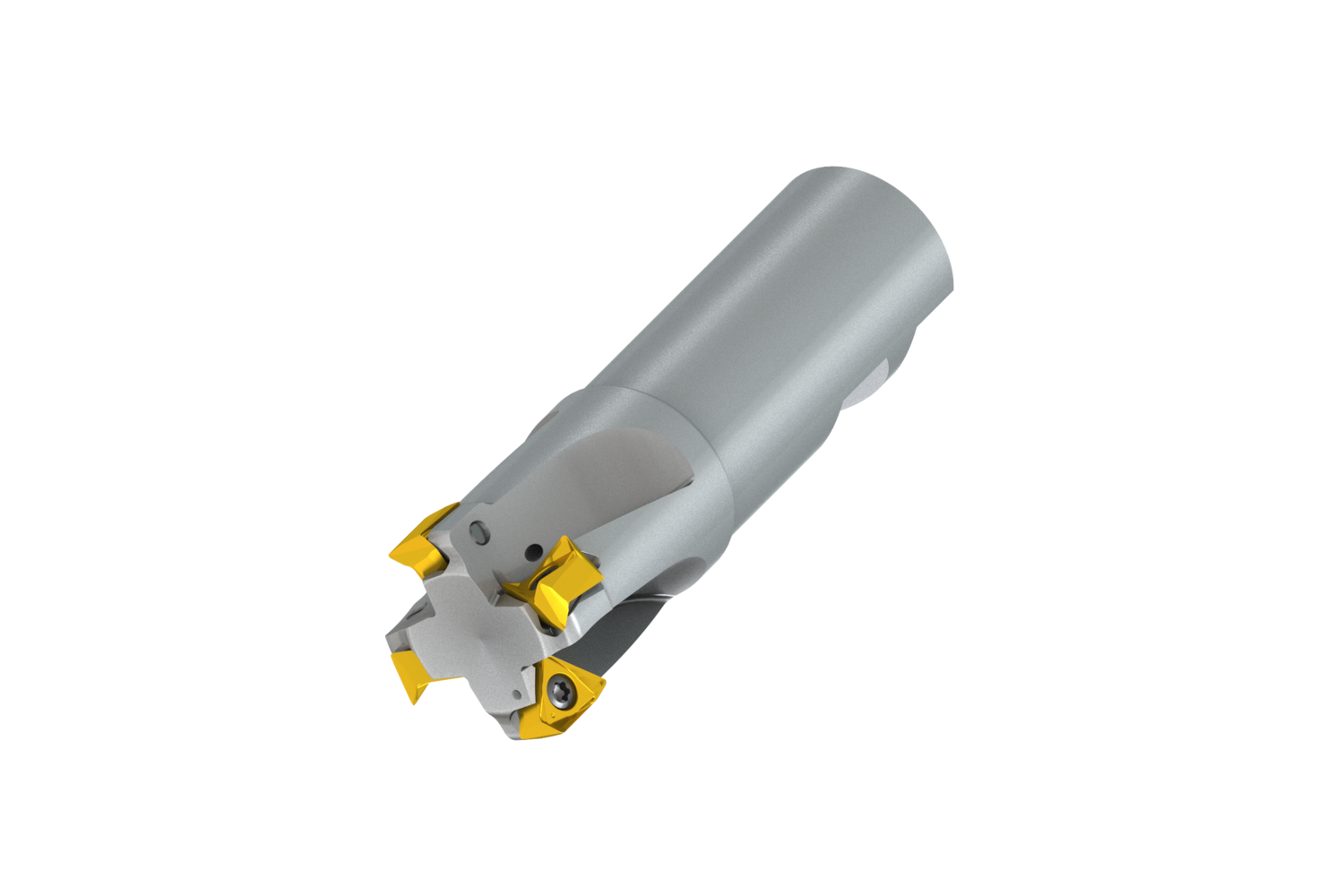

End Milling Cutter - Square Shoulder - 150A4R200W125-ISTN16-C
