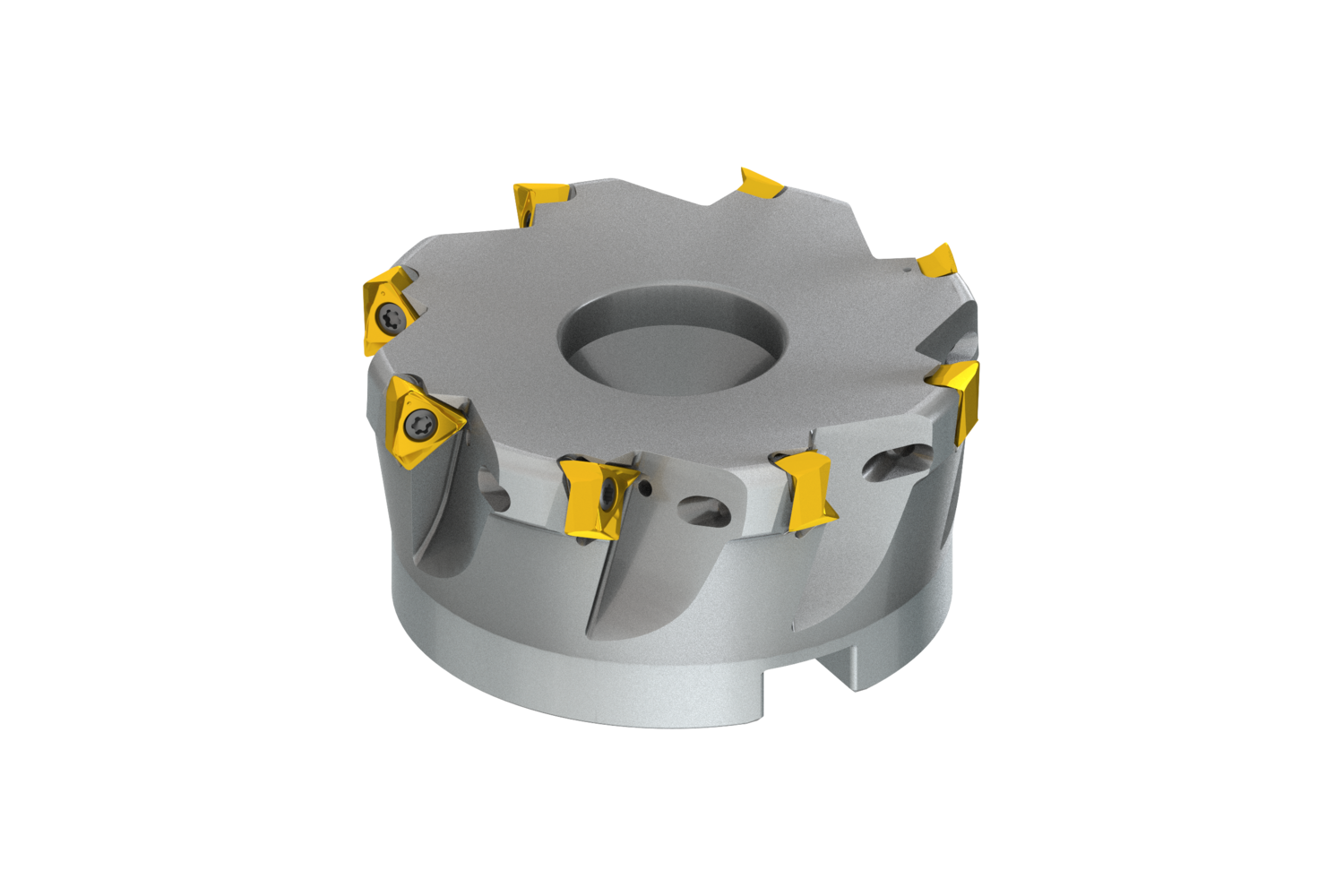

Shoulder face mill with double negative geometry which utilises 8 of TNGX 1606.. double-sided inserts, cutting diameter 4.000" with 90° approach angle and connection bore according to DIN 8030-A, , through coolant and differential pitch for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes
- Product Name ISO: 400A08R-IS90TN16-C
- Ordering Code ANSI: 400A08R-IS90TN16-C
- EDP Number: 8021180
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

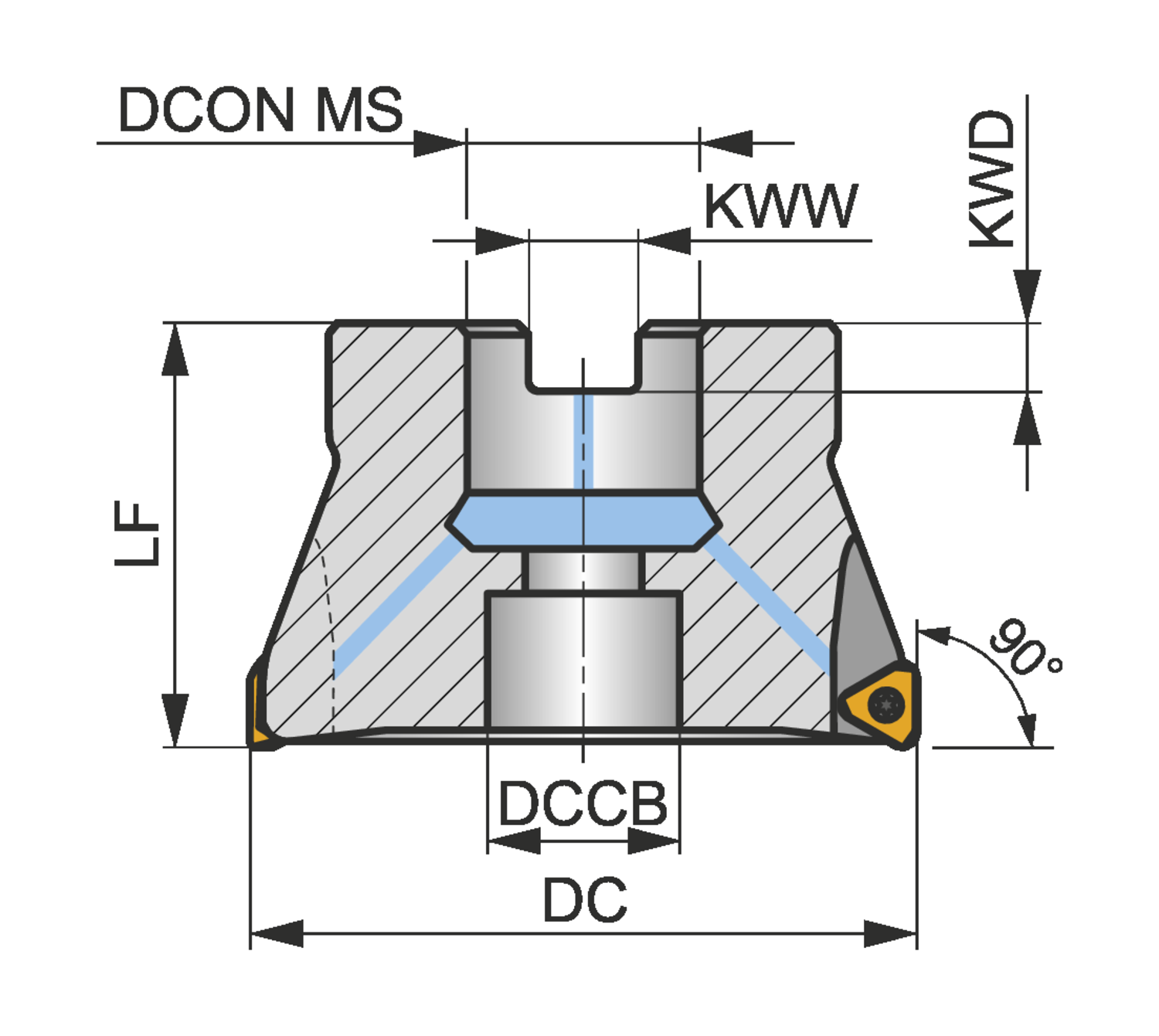

| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 101.6 |
| Cutting Diameter (In.) | 4 |
| Connection Diameter (Mm.) | 38.1 |
| Connection Diameter (In.) | 1.5 |
| Shank | Shell Mill DIN 8030 A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
