Shoulder face mill with double negative geometry which utilises 3 off TNGX 1004.. double-sided inserts, cutting diameter .750'' with 90° approach angle and M10 threaded shank for standard modular tool-holders, 1.024'' protrusion length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''
- Product Name ISO: 075A3R102M10-ISTN10-C
- Ordering Code ANSI: 075A3R102M10-ISTN10-C
- EDP Number: 7276938
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

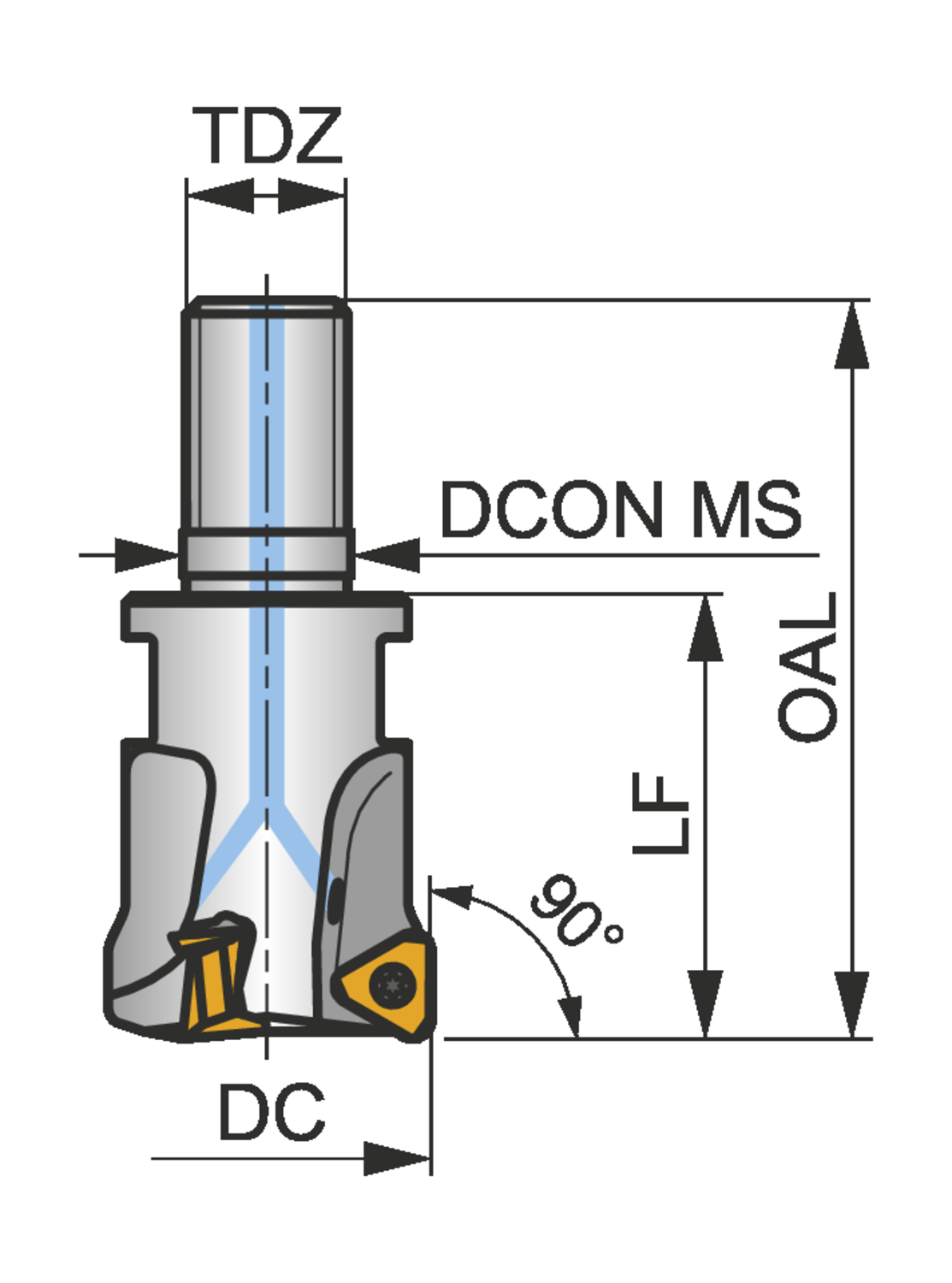

| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 19.1 |
| Cutting Diameter (In.) | 0.75 |
| Connection Diameter (Mm.) | 10.5 |
| Overall Length (Mm.) | 45 |
| Connection Diameter (In.) | 0.413 |
| Overall Length (In.) | 1.772 |
| Shank | Threaded Coupling |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
| Thread Diameter Size | M10 |
