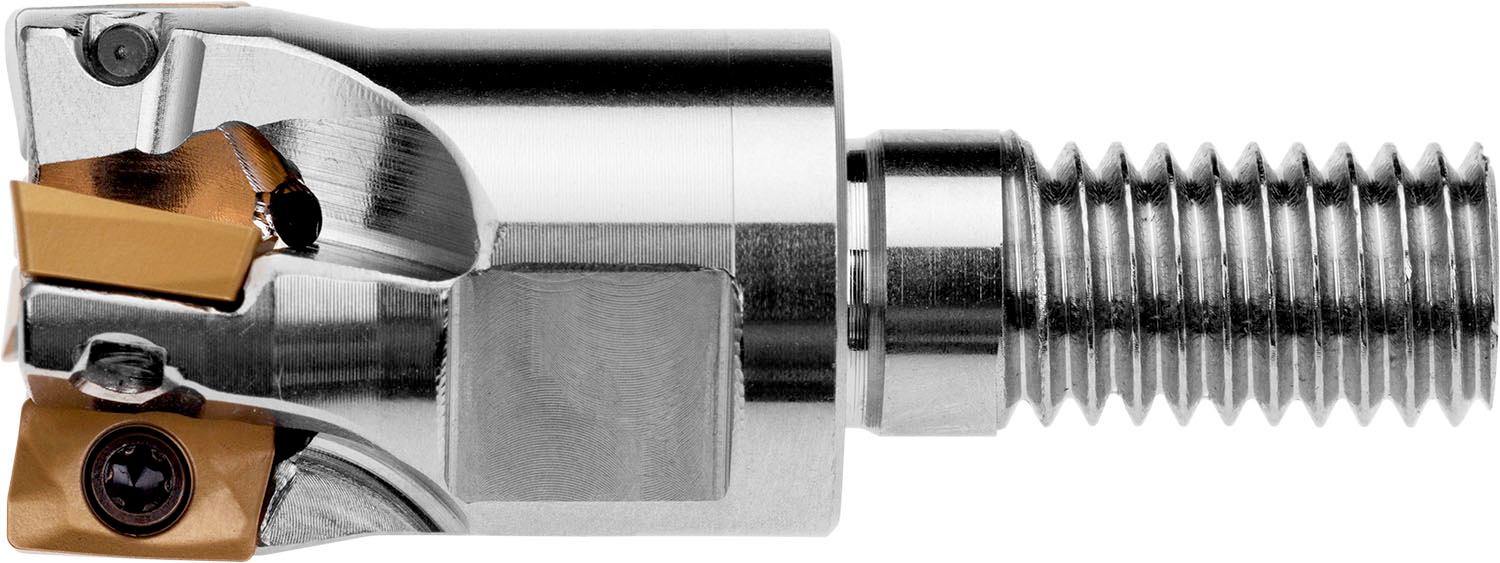

Shoulder mill with positve/negative geometry which utilises 2 off ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 12mm with 90° approach angle and M6 threaded shank for standard modular tool-holders, 20mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 5.0mm
- Product Name ISO: 12A2R020M06-SAD07D-C
- Ordering Code ANSI: 12A2R020M06-SAD07D-C
- EDP Number: 6923284
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

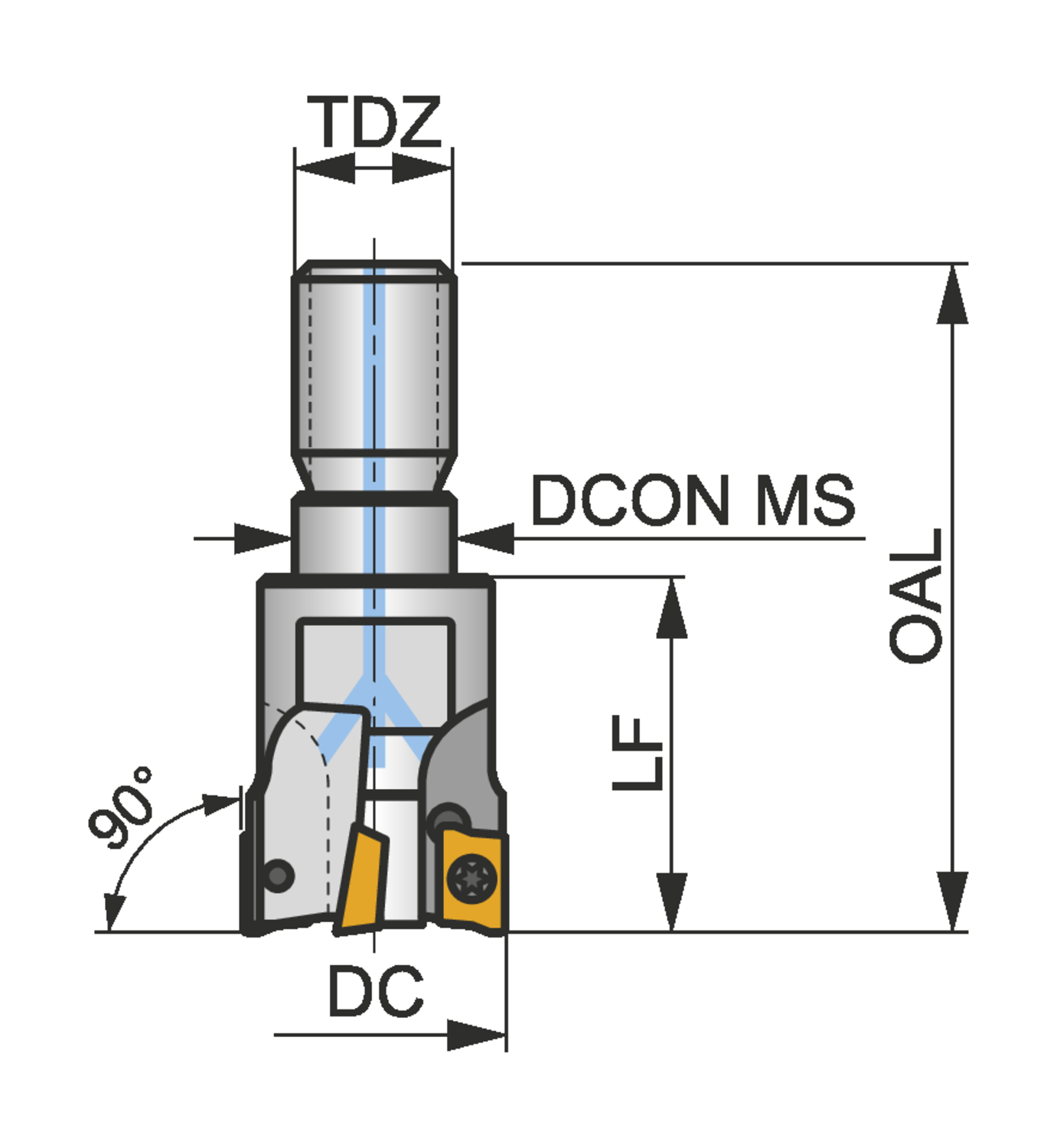

| Product Measurement Standard | Metric |
| Cutting Diameter (Mm.) | 12 |
| Cutting Diameter (In.) | 0.472 |
| Connection Diameter (Mm.) | 6.5 |
| Overall Length (Mm.) | 35 |
| Connection Diameter (In.) | 0.256 |
| Overall Length (In.) | 1.378 |
| Shank | Threaded Coupling |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
| Thread Diameter Size | M6 |
