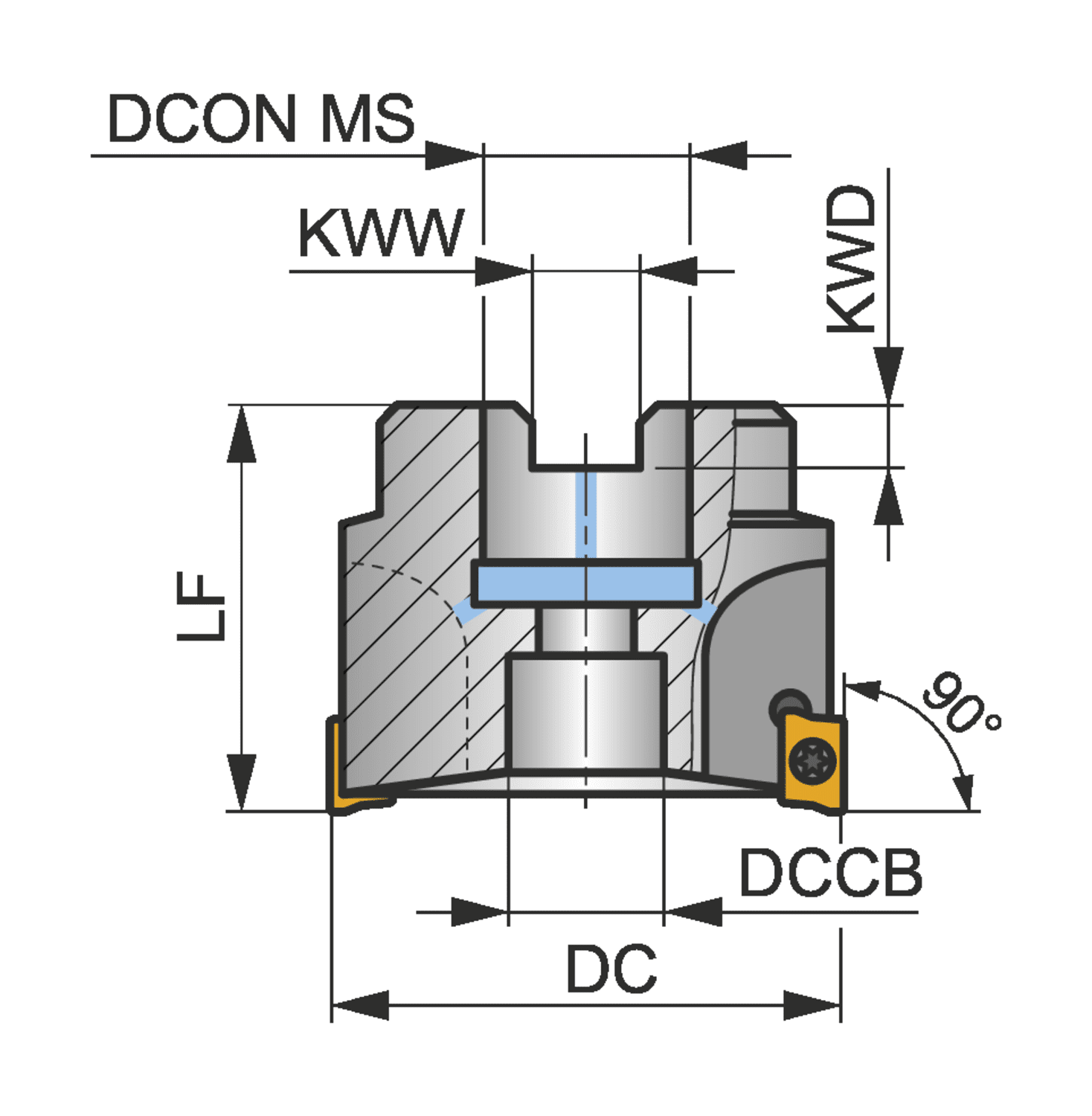

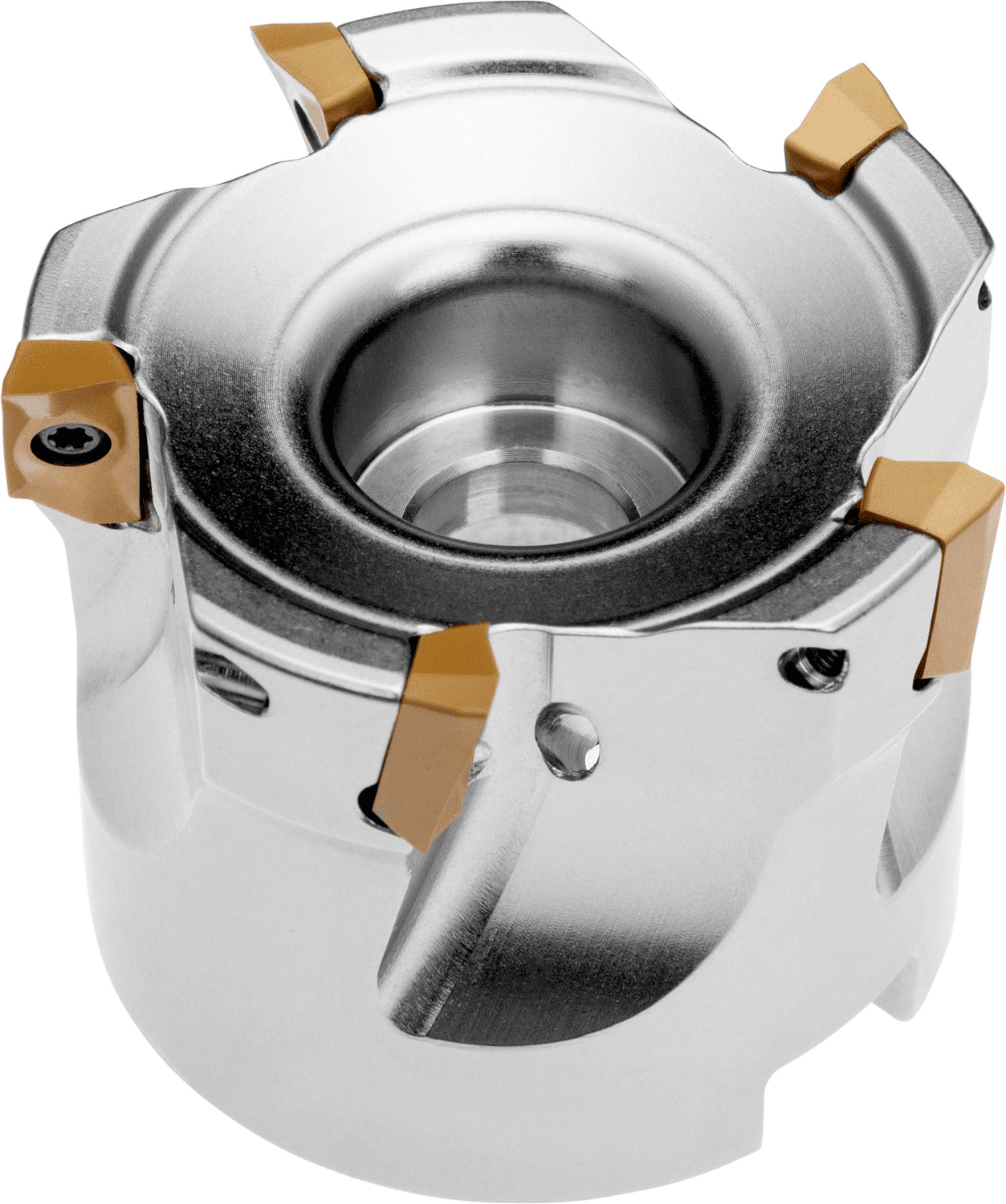

Shoulder mill with positve/negative geometry which utilises 12 off ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 5.000'' with 90° approach angle and 1.500'' connection bore according to DIN 8030-A, 2.480'' protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .354''

• Product Name ISO: 500A12R-IS90AD11E-C
• Ordering Code ANSI: 500A12R-IS90AD11E-C
• EDP Number: 6790727
• Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
