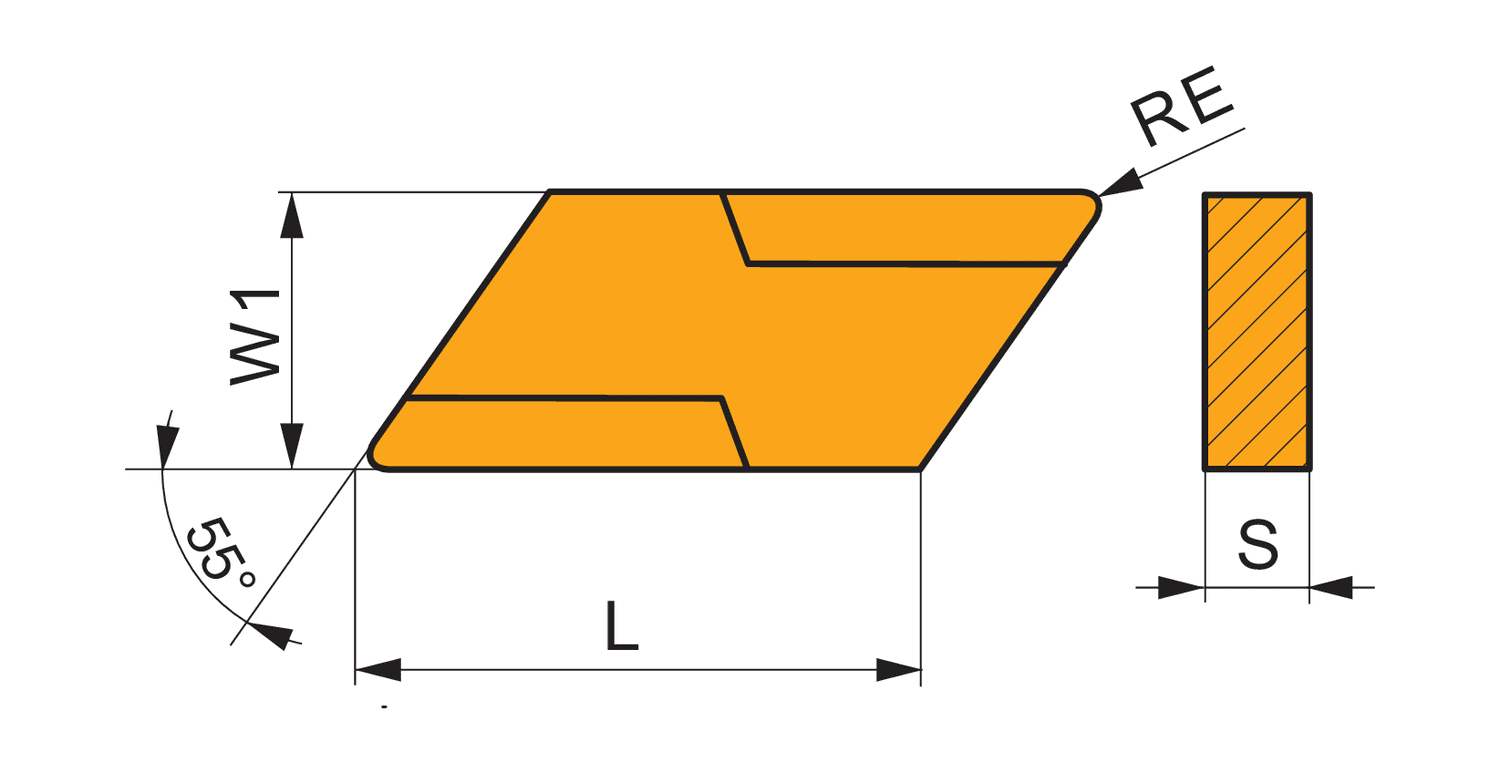

Special design negative turning insert, 55° parallelogram with a main edge length of 16mm, 4.76mm thick, 0.5mm nose radius, indexing accuracy according to ISO-tolerance class-U, chip-breaker 73 with rounded cutting edges with facet, in grade 6640, a MT-CVD coated WC-Co carbide within ISO ranges P20-P40 and M20-M35, for medium to heavy machining of steels and stainless-steels with a left handed turning tool
- Product Name ISO: KNUX 160405SL-73:6640
- Ordering Code ANSI: KNUX 160405SL-73:6640
- EDP Number: 6751685
- Coating: 6640
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4.8 |
| Corner Radius (Mm.) | 0.5 |
| Insert Thickness (Mm.) | 4.76 |
| Insert Width (Mm.) | 9.525 |
| Max Depth of Cut (In.) | 0.189 |
| Insert Geometry | Negative |
| Coating | 6640 |
