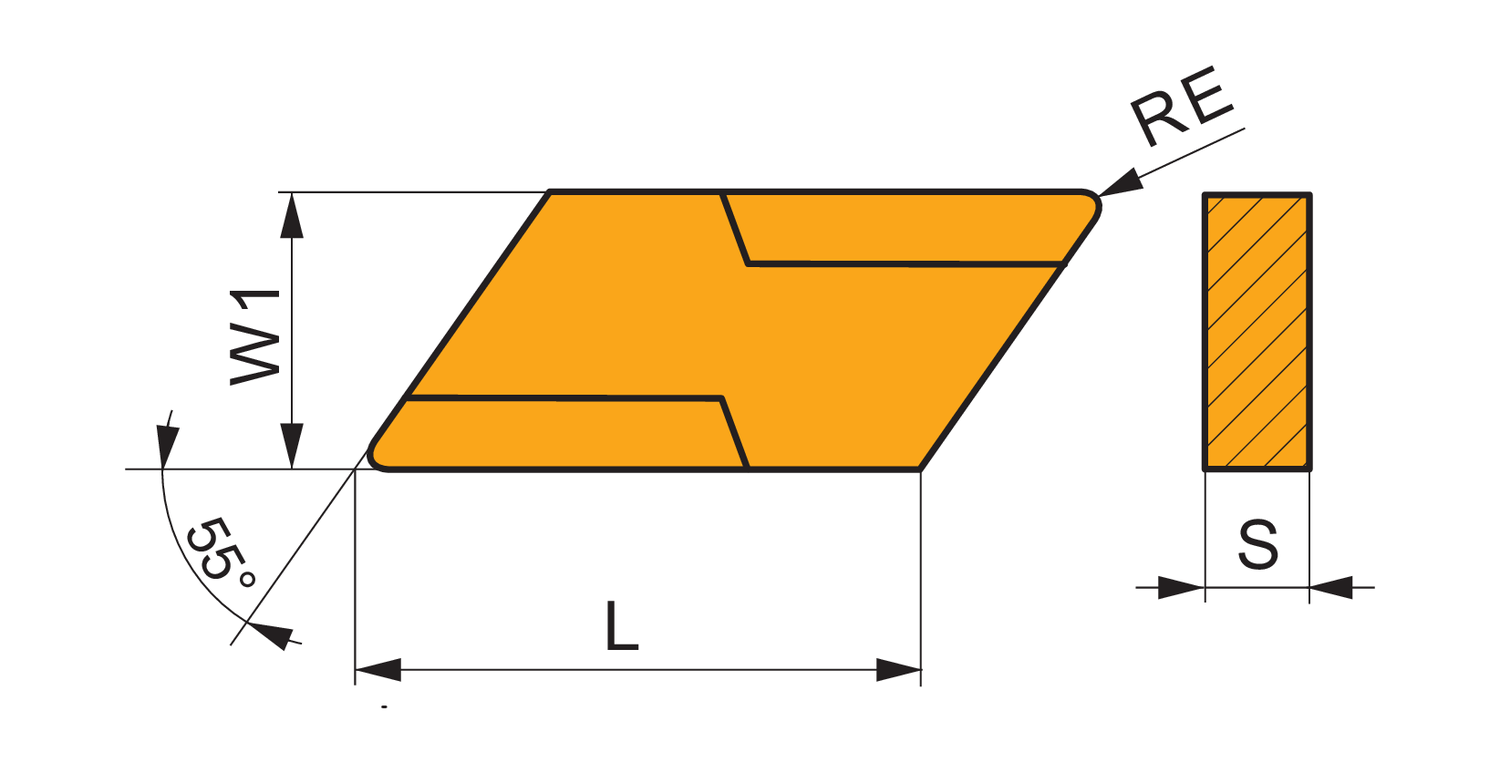

Special design negative turning insert, 55° parallelogram with a main edge length of 16mm, 4.76mm thick, 0.5mm nose radius and indexing accuracy according to ISO-tolerance class-U, chip-breaker 22, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide, for medium to heavy machining with a left handed turning tool
- Product Name ISO: KNUX 160405L-22:T7335
- Ordering Code ANSI: KNUX 160405L-22:T7335
- EDP Number: 7455429
- Coating: T7335
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4.8 |
| Corner Radius (Mm.) | 0.5 |
| Insert Thickness (Mm.) | 4.76 |
| Insert Width (Mm.) | 9.525 |
| Max Depth of Cut (In.) | 0.189 |
| Insert Geometry | Negative |
| Coating | T7335 |
