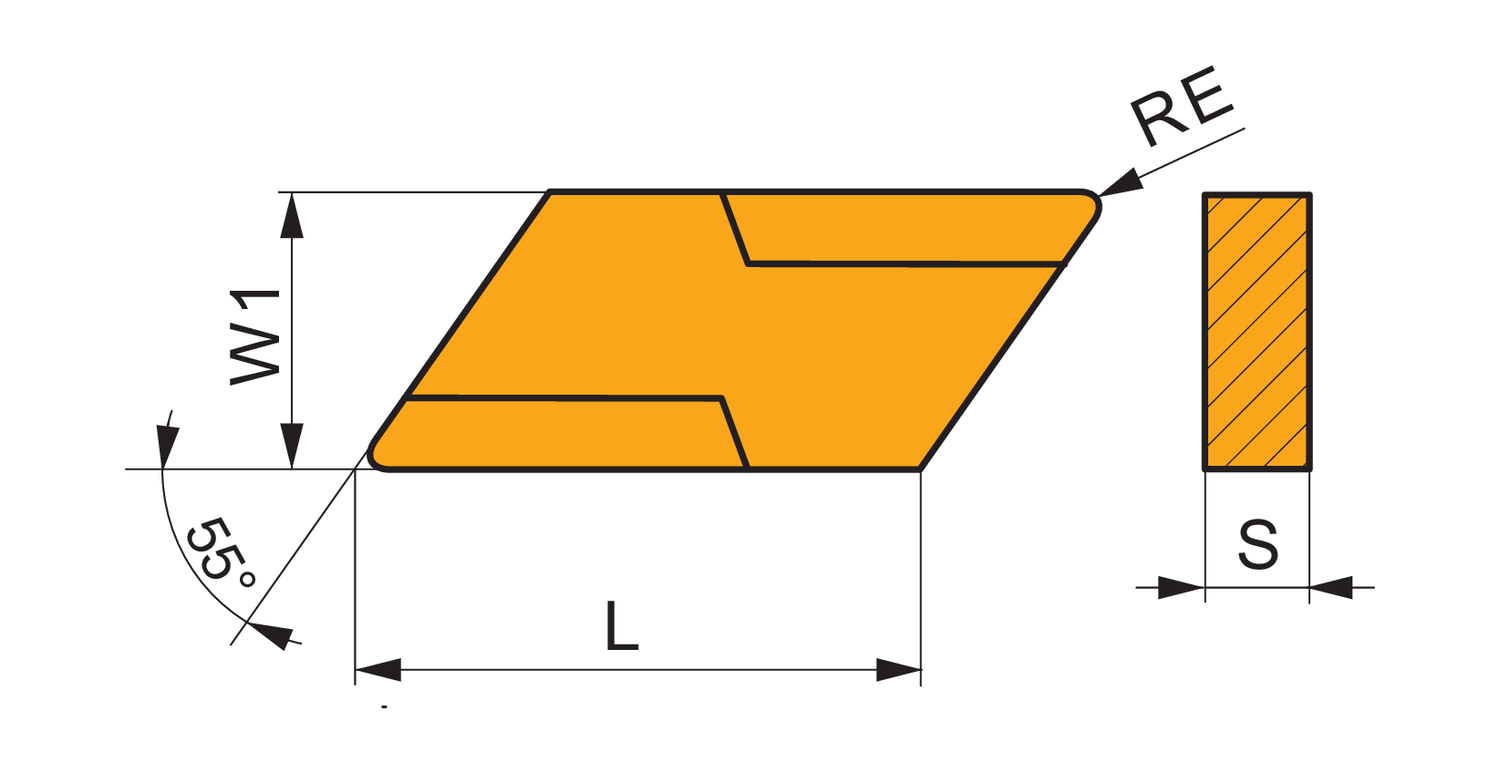

Special design negative turning insert, 55° parallelogram with a main edge length of 16mm, 4.76mm thick, 1mm nose radius, indexing accuracy according to ISO-tolerance class-U, chip-breaker 73 with rounded cutting edges with facet, in grade T5315, a MT-CVD coated WC-Co carbide, for medium to heavy machining with a right handed turning tool
- Product Name ISO: KNUX 160410SR-73:T5315
- Ordering Code ANSI: KNUX 160410SR-73:T5315
- EDP Number: 6755764
- Coating: T5315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4.8 |
| Corner Radius (Mm.) | 1 |
| Insert Thickness (Mm.) | 4.76 |
| Insert Width (Mm.) | 9.525 |
| Max Depth of Cut (In.) | 0.189 |
| Insert Geometry | Negative |
| Coating | T5315 |
