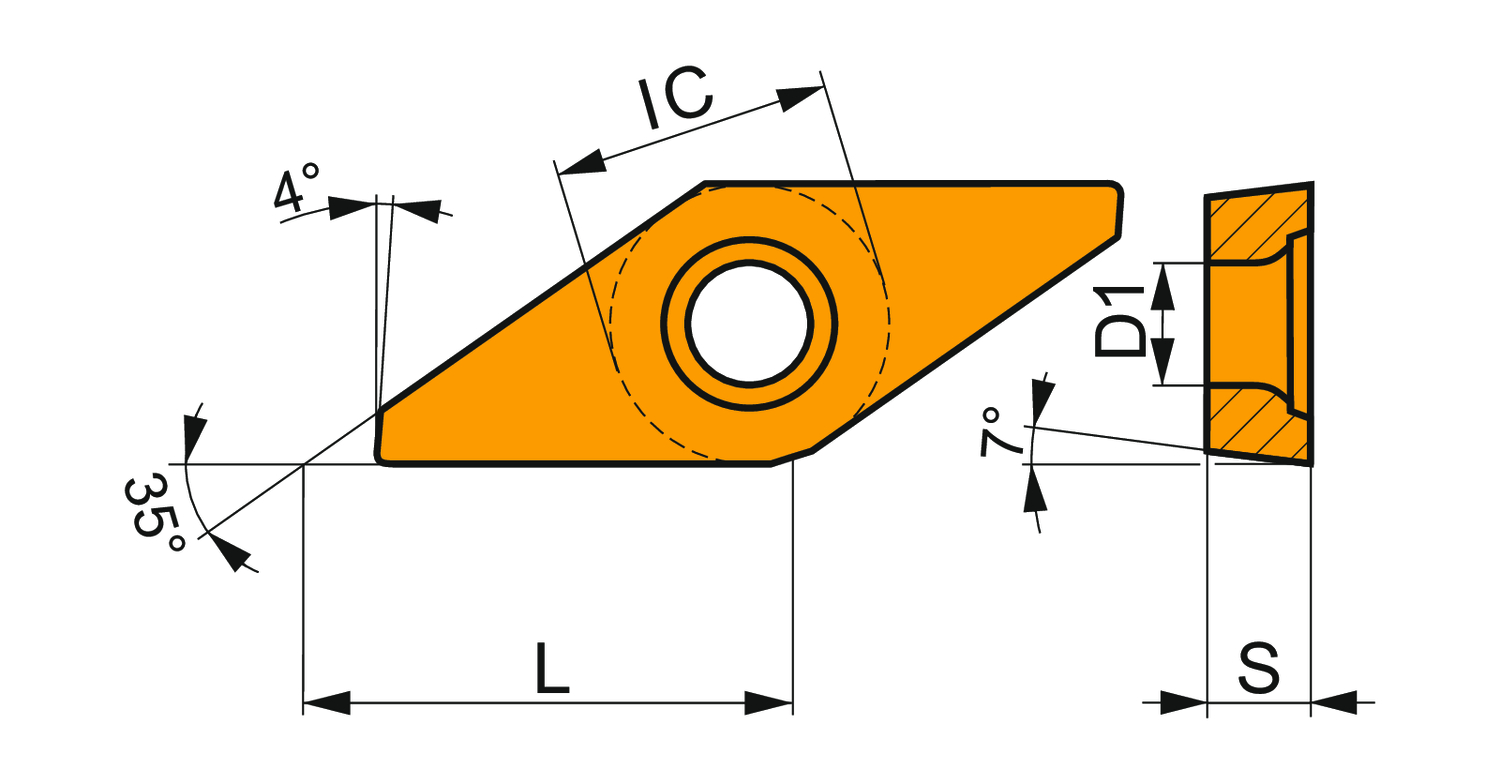

Special design positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 5/16", 1/8" thick, 1/256" nose radius, indexing accuracy according to ISO-tolerance class- G, , chip-breaker FF2 with sharp cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 - P15 and K05 - K20, for fine to medium machining of steels and cast-irons with a right handed turning tool
- Product Name ISO: VCGX 130301FR-FF2:T6310
- Ordering Code ANSI: VCGX 2.520.2FR-FF2:T6310
- EDP Number: 7156798
- Coating: T6310
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.5 |
| Corner Radius (Mm.) | 0.1 |
| Fixing Hole Diameter (Mm.) | 3.4 |
| Inscribing Circle Dia. (Mm.) | 7.94 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.059 |
| Insert Geometry | Positive |
| Coating | T6310 |
