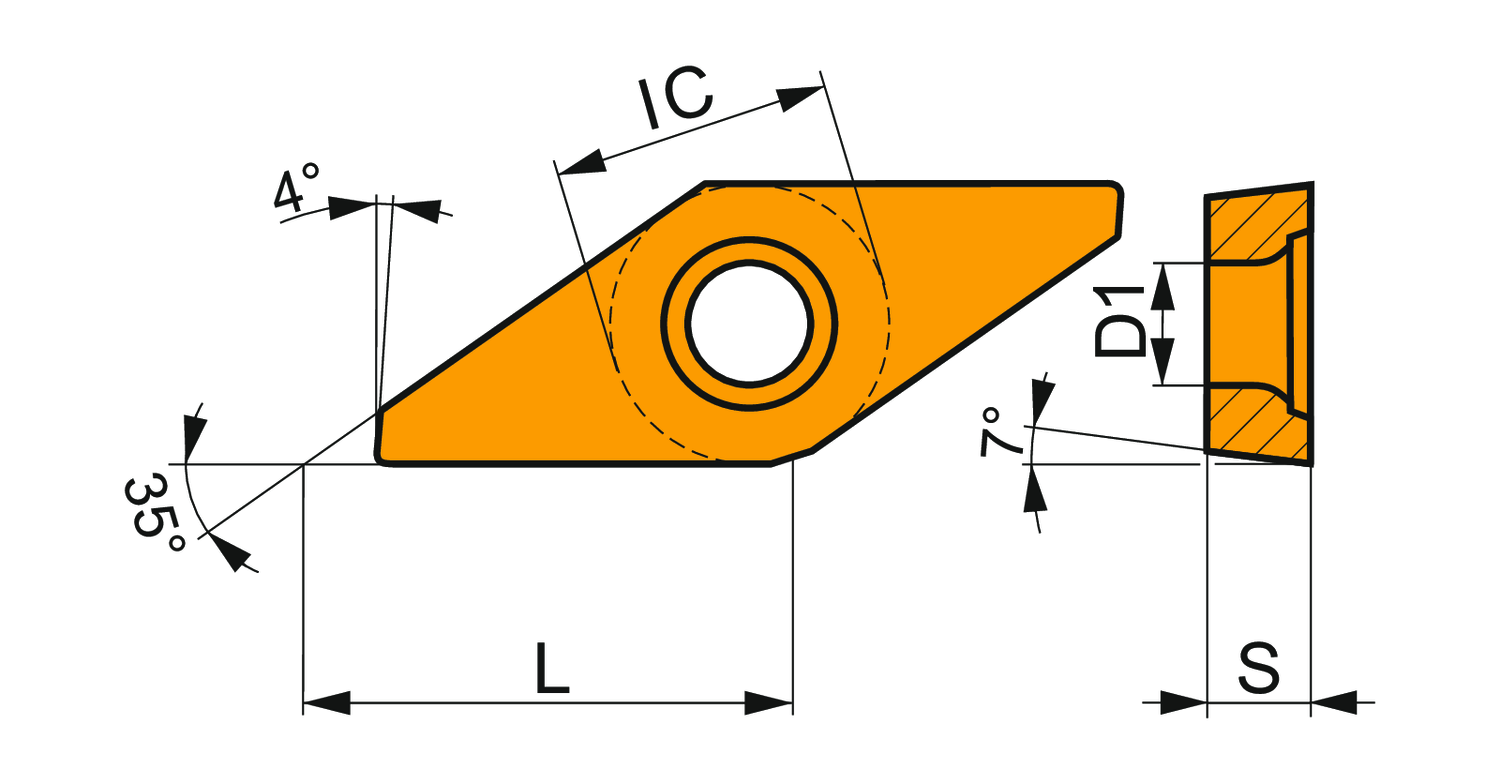

Special design positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 5/16", 1/8" thick nose radius, indexing accuracy according to ISO-tolerance class- G, , chip-breaker FF2 with sharp cutting edges, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO range K05-K25, for fine to medium machining of cast-irons with a left handed turning tool
- Product Name ISO: VCGX 130300FL-FF2:T8315
- Ordering Code ANSI: VCGX 2.520FL-FF2:T8315
- EDP Number: 6756214
- Coating: T8315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.5 |
| Corner Radius (Mm.) | 0 |
| Fixing Hole Diameter (Mm.) | 3.4 |
| Inscribing Circle Dia. (Mm.) | 7.94 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.059 |
| Insert Geometry | Positive |
| Coating | T8315 |
