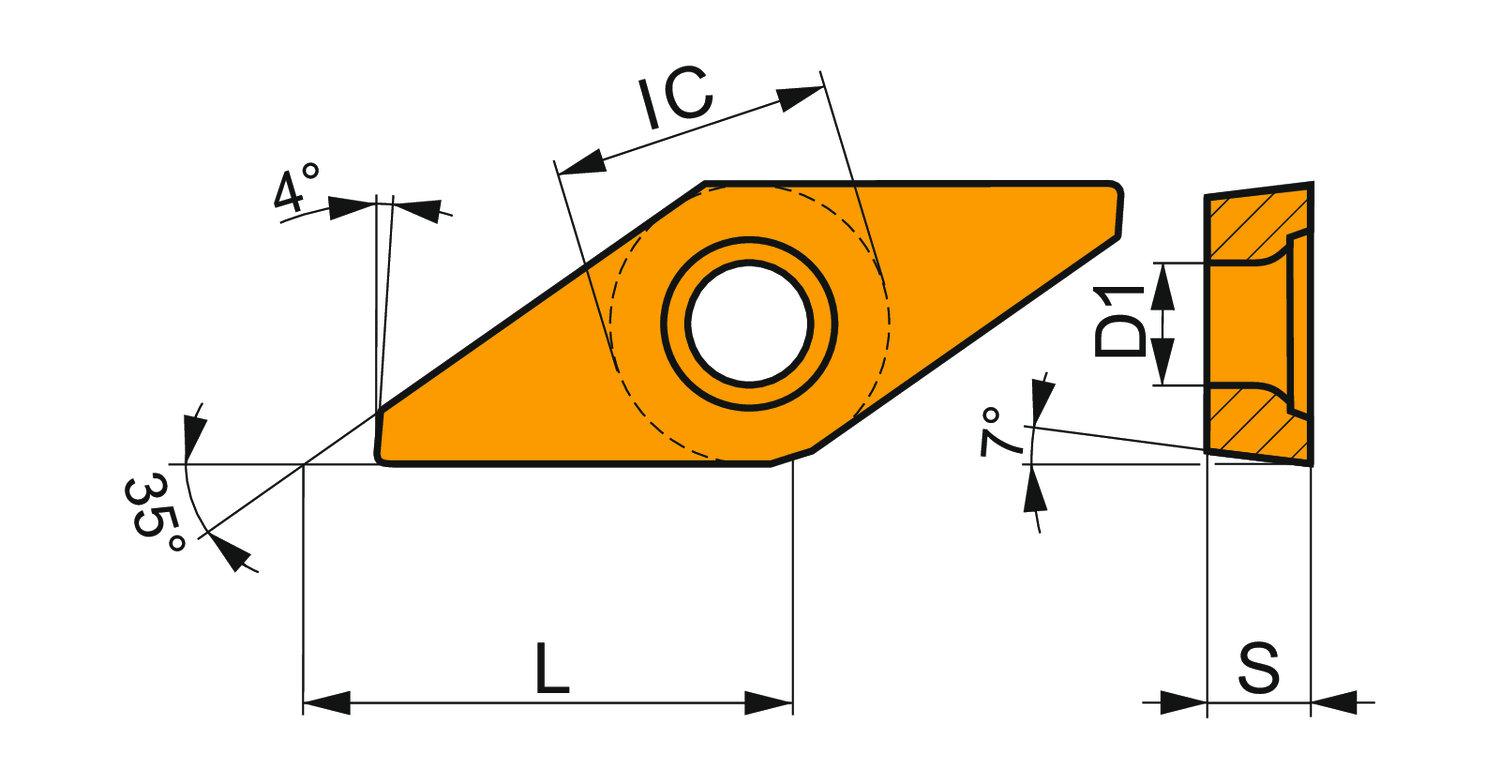

Special design positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 5/16", 1/8" thick nose radius, indexing accuracy according to ISO-tolerance class- G, , chip-breaker FF2 with sharp cutting edges, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine to medium machining of steels with a right handed turning tool
- Product Name ISO: VCGX 130300FR-FF2:TT010
- Ordering Code ANSI: VCGX 2.520FR-FF2:TT010
- EDP Number: 6756310
- Coating: TT010
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.5 |
| Corner Radius (Mm.) | 0 |
| Fixing Hole Diameter (Mm.) | 3.4 |
| Inscribing Circle Dia. (Mm.) | 7.94 |
| Insert Thickness (Mm.) | 3.18 |
| Max Depth of Cut (In.) | 0.059 |
| Insert Geometry | Positive |
| Coating | TT010 |
