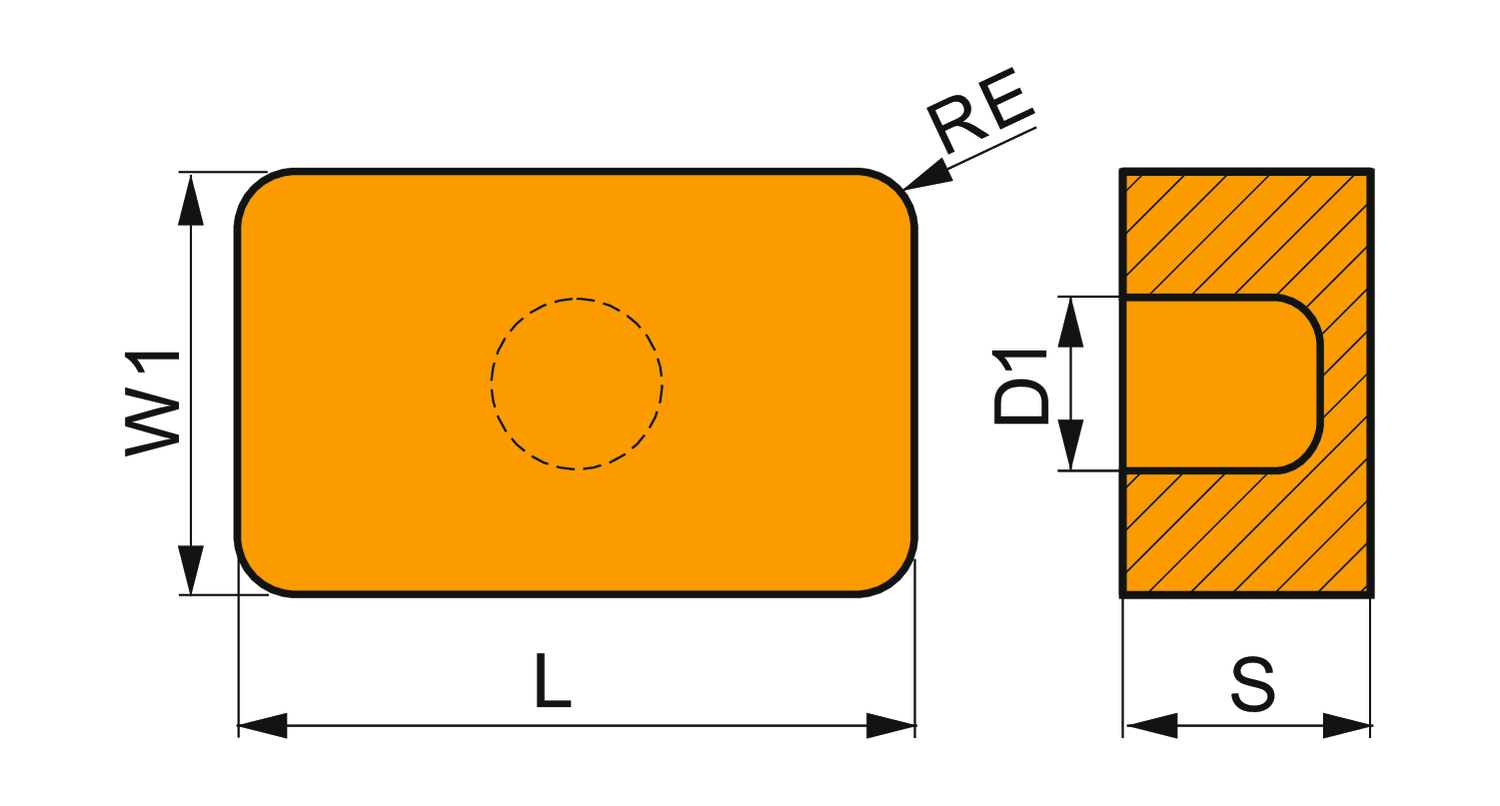

Special design negative turning insert, rectangular with a main edge length of 50.8mm, 3.2mm nose radius and indexing accuracy according to ISO-tolerance class-U, chip-breaker 1275000, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for extra heavy machining of steels
- Product Name ISO: LNUX 50-1275000:T9325
- Ordering Code ANSI: LNUX 50-1275000:T9325
- EDP Number: 6753982
- Coating: T9325
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 36 |
| Corner Radius (Mm.) | 3.2 |
| Fixing Hole Diameter (Mm.) | 9.3 |
| Insert Thickness (Mm.) | 14 |
| Insert Width (Mm.) | 25.4 |
| Max Depth of Cut (In.) | 1.417 |
| Insert Geometry | Negative |
| Coating | T9325 |
