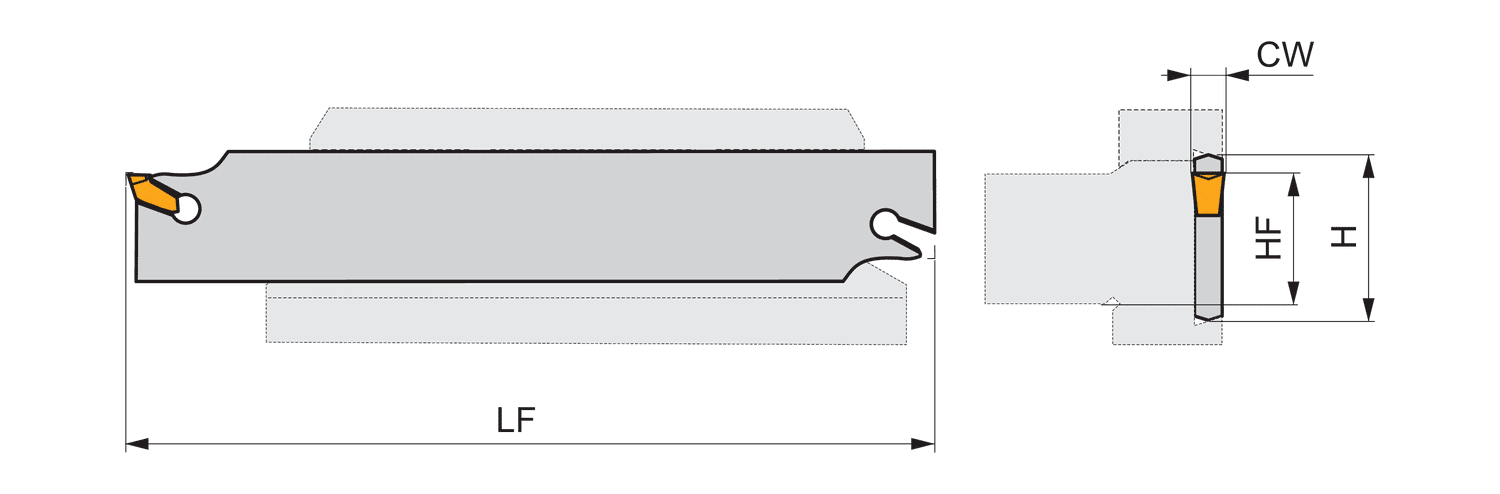

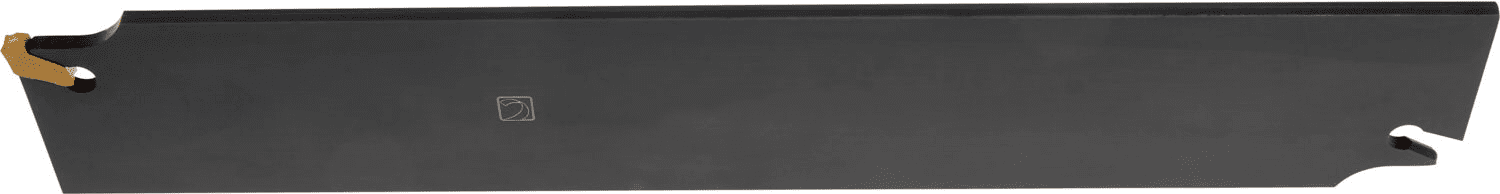

Spring clamp parting and grooving tool blade for holding a single ended insert with 5mm cutting width (designation LFMX 5.1-. ), tool style assembly with 45-DU.. for a maximum grooving depth of 80mm, tool blade height 45mm and length 250mm for deep radial grooving, parting-off and tube parting-off

• Product Name ISO: XLCFN 4504 S 5.00
• Ordering Code ANSI: XLCFN 4504 S 5.00
• EDP Number: 6756570
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
