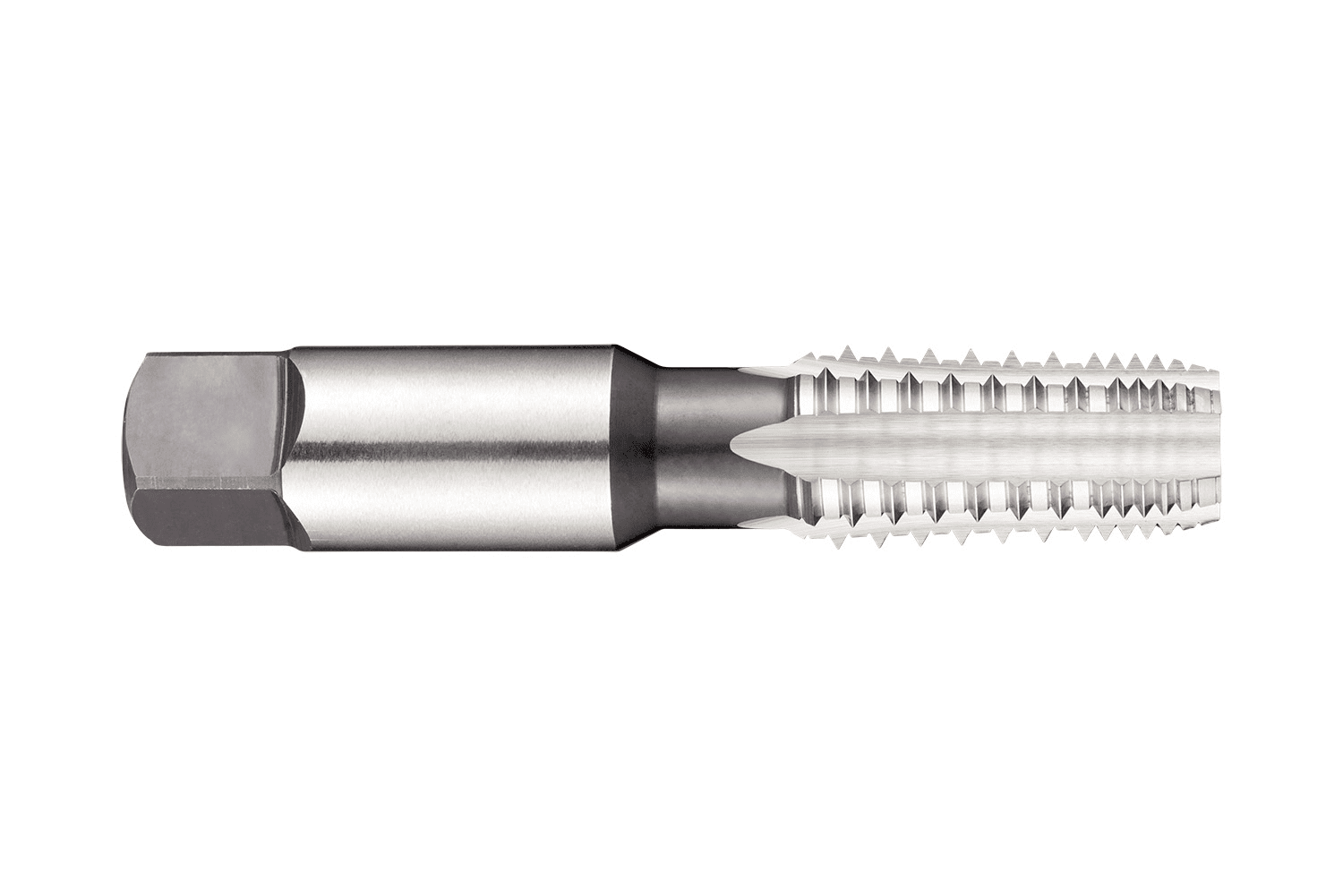

Straight flute tap with chamfer form C with a 2-3xP plug lead, for National Pipe Taper thread NPT 1" with 11.5 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 28.6mm shank and 21.4mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in alloy steel
- Product Name ISO: E7111
- Ordering Code ANSI: E7111
- EDP Number: 0099926
- Coating: Bright
- Material Code (BMC): HSS
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |

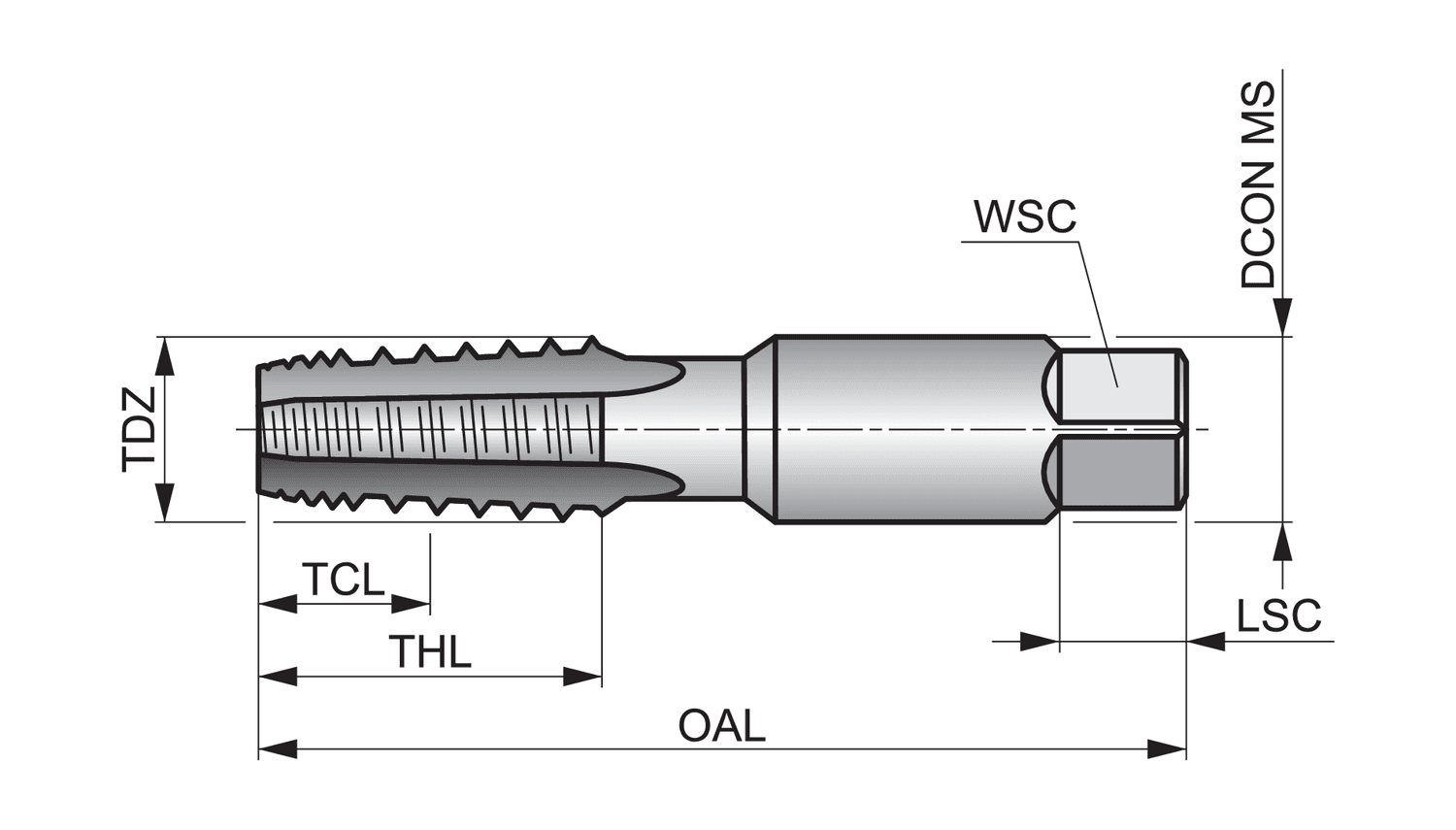

| Connection Diameter (Mm.) | 28.6 |
| Overall Length (Mm.) | 115 |
| Thread Dia. (In.) | 1.315 |
| Threads Per Inch | 11.5 |
| Connection Diameter (In.) | 1.126 |
| Overall Length (In.) | 4.5276 |
| Material Code | HSS |
| Coating | Bright |
| Shank | Cylindrical Shank with Square |
| Flute Count | 5 |
| Tap Application | Through or Blind Hole |
| Thread Form | NPT - National Taper Pipe |
| Flute Geometry | Straight Flute Geometry |
| Cutting Direction | Right |
| Thread Diameter Size | 1 |
