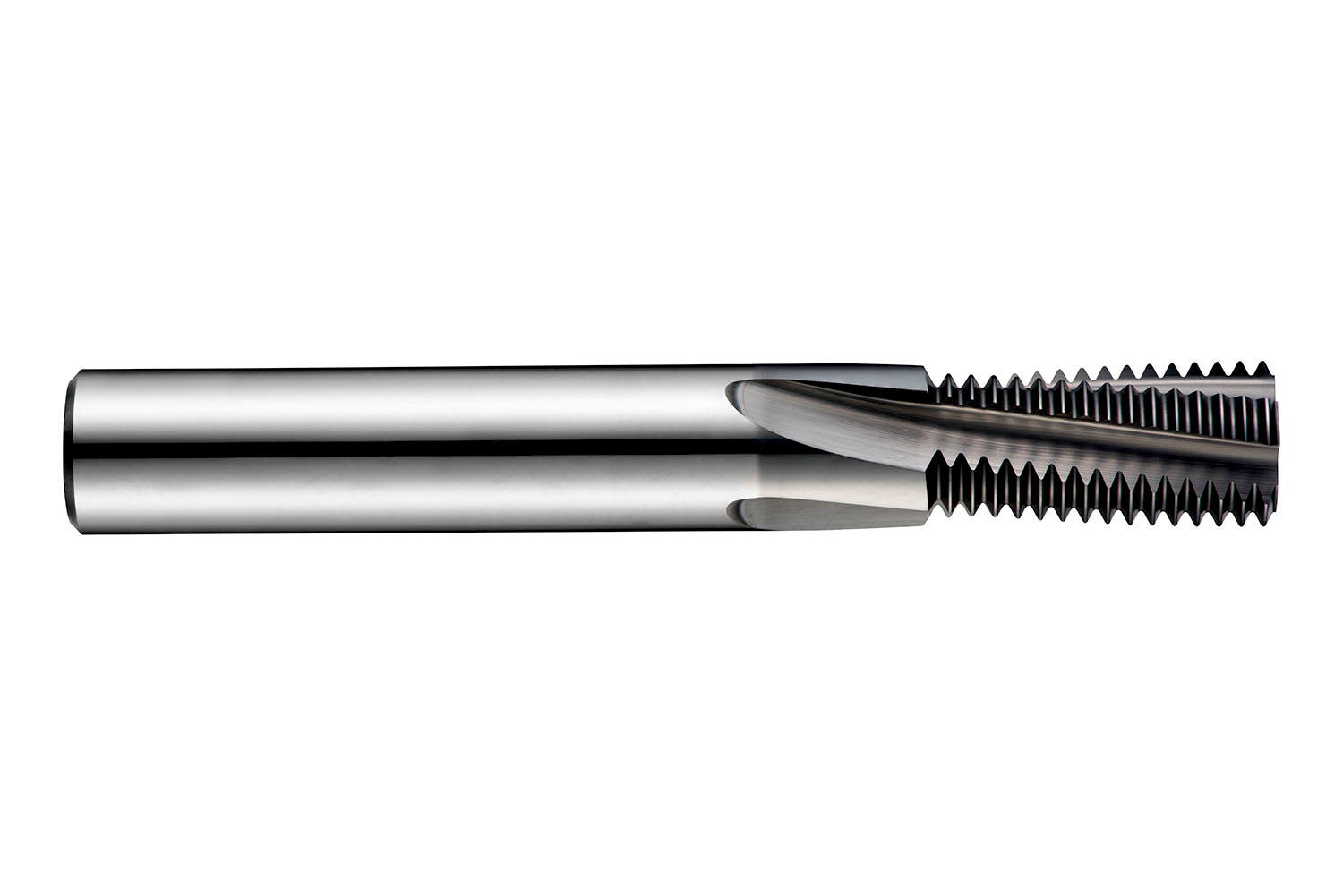

Thread milling cutter, for British Standard Pipe thread = G 1/8" with 28 TPI, dimensions according to DORMER standard with 3 flutes, 6mm cutting diameter and 6mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 15mm long right or left hand internal and external thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron
- Product Name ISO: J2806.0-28
- Ordering Code ANSI: J2806.0-28
- EDP Number: 46821356
- Coating: Alcrona Pro
- Material Code (BMC): HM
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |

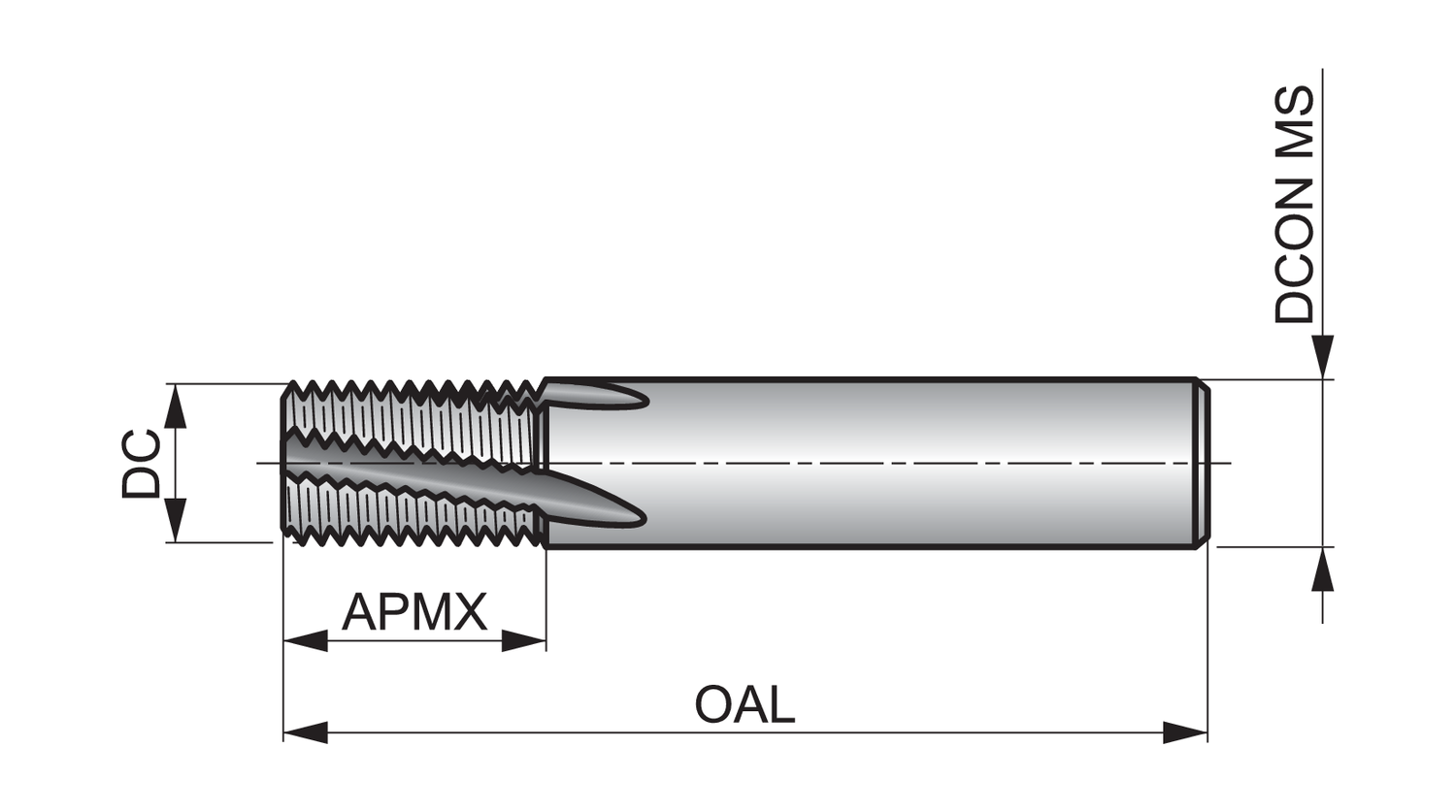

| Cutting Diameter (Mm.) | 6 |
| Cutting Diameter (In.) | 0.2362 |
| Depth of Cut Maximum (Mm.) | 15 |
| Connection Diameter (Mm.) | 6 |
| Overall Length (Mm.) | 57 |
| Threads Per Inch | 28 |
| Max Depth of Cut (In.) | 0.5906 |
| Connection Diameter (In.) | 0.2362 |
| Overall Length (In.) | 2.2441 |
| Material Code | HM |
| Coating | Alcrona Pro |
| Shank | Cylindrical Shank DIN 6535 HA |
| Flute Count | 3 |
| Thread Form | G - British Standard Pipe Fastening - G Series |
| Flute Geometry | Spiral Flute Geometry |
| Cutting Direction | Right |
| Thread Diameter Size | 1/8 |
