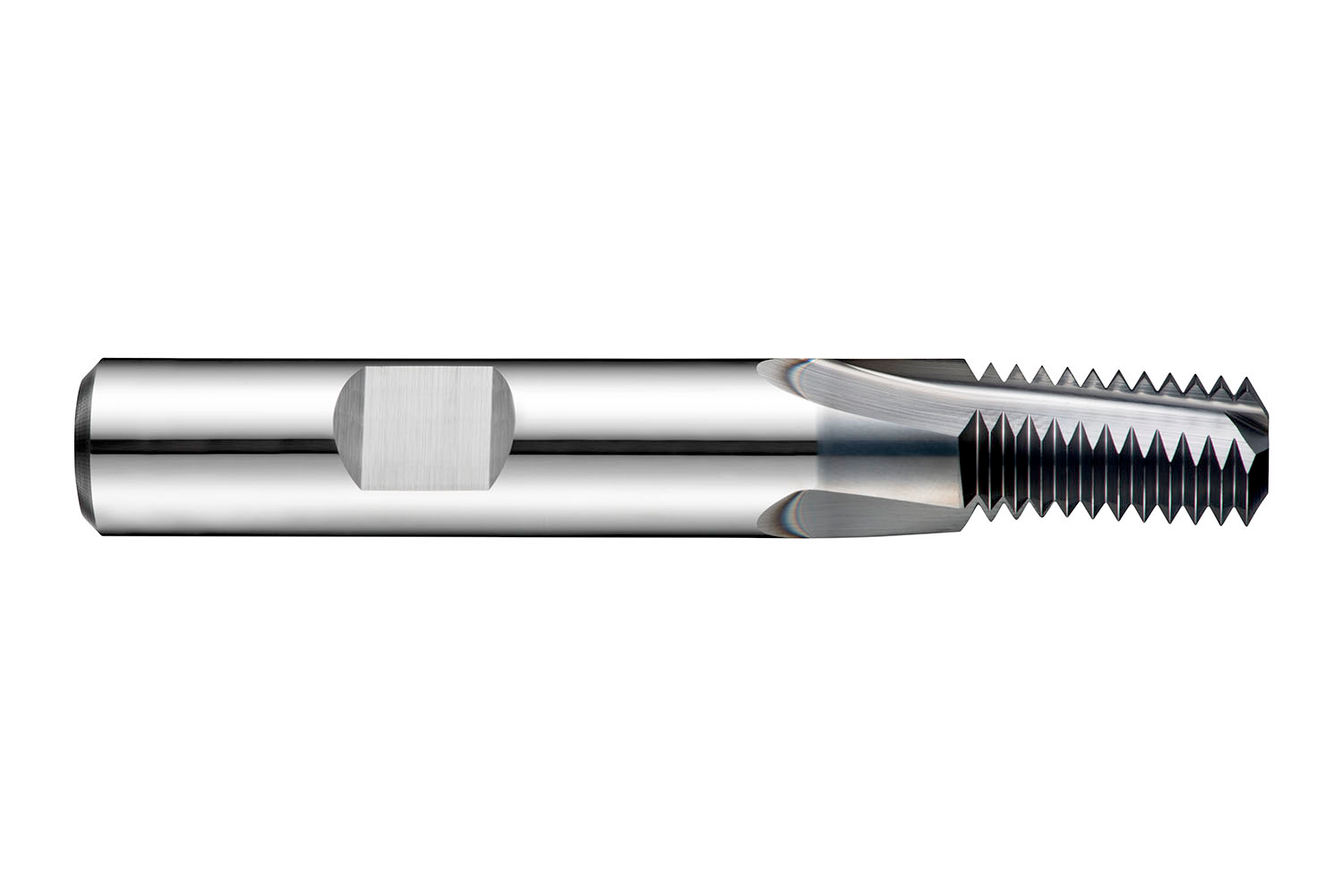

Thread milling cutter, for National Pipe Taper thread = NPT 1/8" with 27 TPI, dimensions according to DORMER standard with 3 flutes, 7.9mm cutting diameter and 8mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating and 10° helix angle for milling a maximum of 11.5mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron
- Product Name ISO: J2607.9-27
- Ordering Code ANSI: J2607.9-27
- EDP Number: 46821349
- Coating: Alcrona Pro
- Material Code (BMC): HM
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |

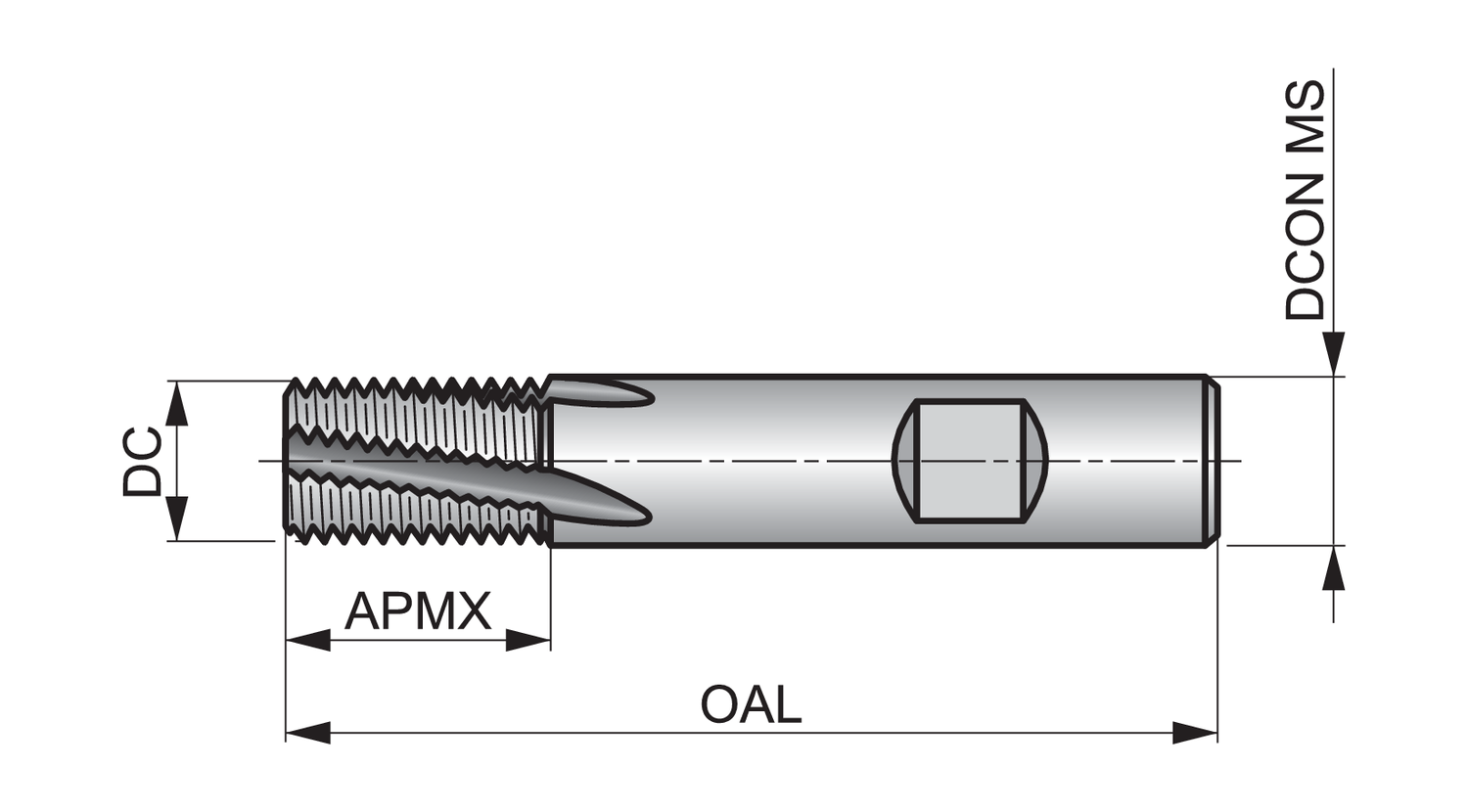

| Cutting Diameter (Mm.) | 7.9 |
| Cutting Diameter (In.) | 0.311 |
| Depth of Cut Maximum (Mm.) | 11.5 |
| Connection Diameter (Mm.) | 8 |
| Overall Length (Mm.) | 58 |
| Threads Per Inch | 27 |
| Max Depth of Cut (In.) | 0.4528 |
| Connection Diameter (In.) | 0.315 |
| Overall Length (In.) | 2.2835 |
| Material Code | HM |
| Coating | Alcrona Pro |
| Shank | Cylindrical Shank DIN 6535 HB |
| Flute Count | 3 |
| Thread Form | NPT - National Taper Pipe |
| Flute Geometry | Spiral Flute Geometry |
| Cutting Direction | Right |
| Thread Diameter Size | 1/8 |
