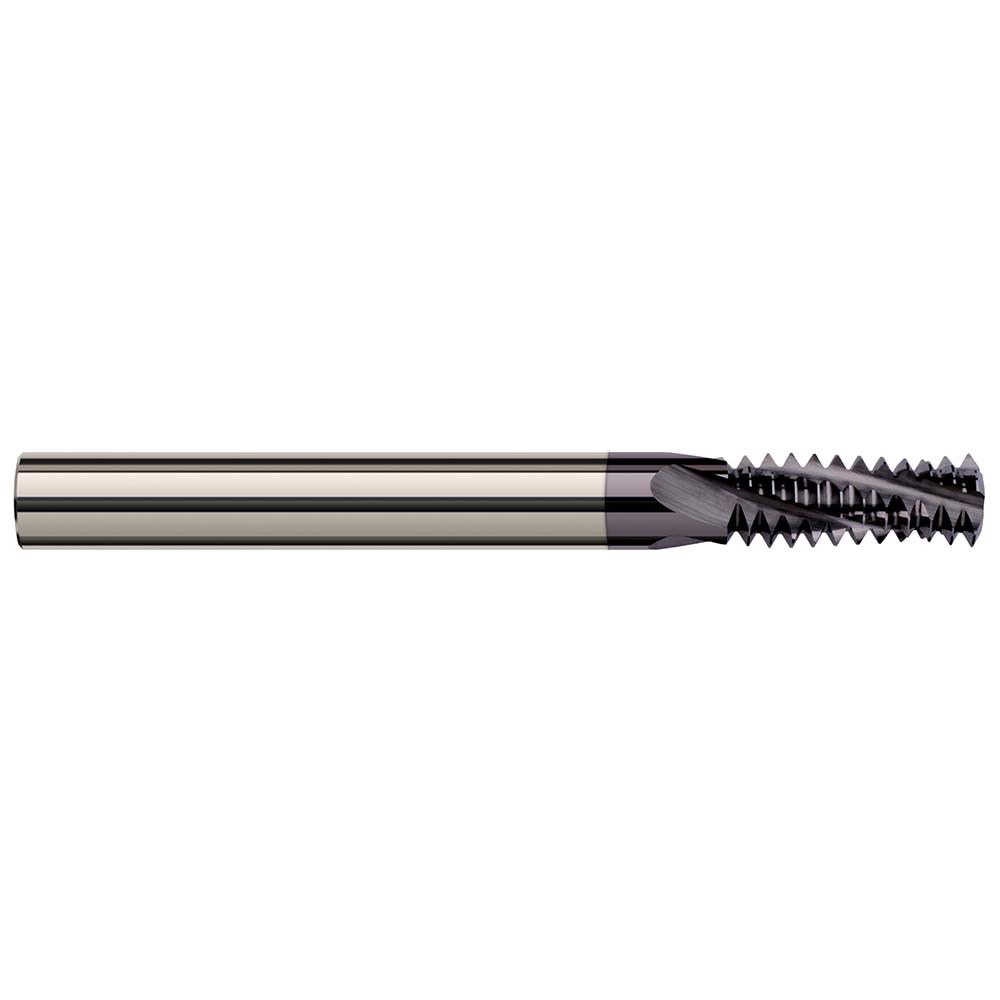

TE Series from YG1 Thread Mills Carbide UN TiAlN Coated #2-56 UN
- Suitable for a wide range of materials including steels, stainless steels, cast iron, and non-ferrous alloys
- Multi-purpose design supports both internal and external threading operations
- High-performance carbide substrate for extended tool life and wear resistance
- Advanced coatings (e.g., TiAlN variants) improve heat resistance and reduce friction
- Enables thread milling on CNC machines with helical interpolation capability
- One tool can produce multiple thread sizes/pitches (within limits), reducing tool inventory
- Lower cutting forces compared to tapping—ideal for thin-walled or delicate parts
- Reduced risk of tool breakage; safer for high-value workpieces
- Excellent chip control—chips are evacuated more efficiently than with taps
- Allows threading in blind holes without bottoming issues
| Quick Ship Items | No, but I will Ship Soon |
| Material | Carbide |
| Flute Count | 3 |
| Thread Diameter | #2 |
| Thread Pitch | 56 |
| Thread Form | UN - Unified |
| Cutting Diameter (Mm.) | 1.65 |
| Cutting Diameter(In.) | 0.0650 |
| Connection Diameter (In.) | 0.1250 |
| Connection Diameter (Mm.) | 3.18 |
| Depth of Cut Maximum (Mm.) | 3.18 |
| Depth of Cut Maximum (In.) | 0.1250 |
| Overall Length (Mm.) | 50.80 |
| Overall Length (In.) | 2.0000 |
| Helix Angle (Deg.) | 15 |
| Coating | TiAN |
| Cutting Direction | Right |
| Product Measurement Standard | Inch |
| Shank | Plain |
