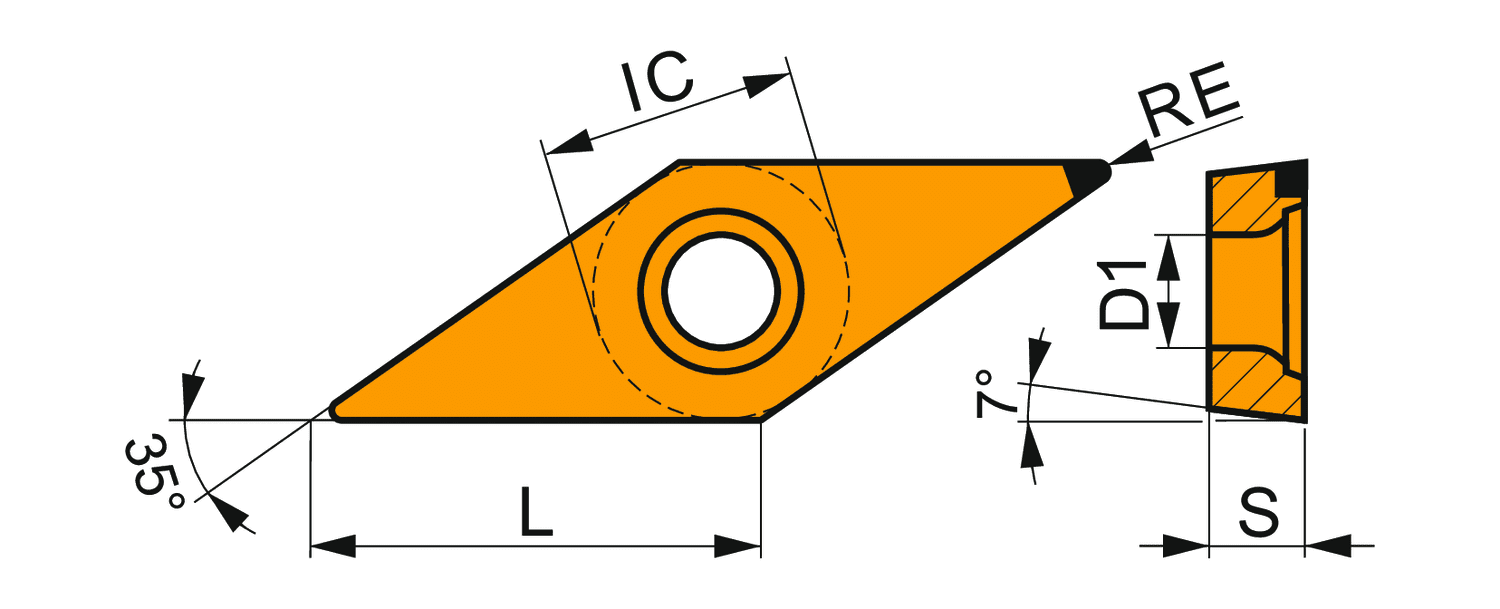

Turning insert with PCD tipped corner, 35° rhomboid with 7° clearance, inscribed circle diameter of 3/8", 3/16" thick, 1/64" nose radius, indexing accuracy according to ISO-tolerance class-M, sharp cutting edges, in grade PD1, an uncoated polycrystaline diamond within ISO range N05-N25, for high-speed machining of non-ferrous metals
- Product Name ISO: VCMW 160404FN:PD1
- Ordering Code ANSI: VCMW 331FN:PD1
- EDP Number: 6751824
- Coating: PD1
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.079 |
| Insert Geometry | Positive |
| Coating | PD1 |
