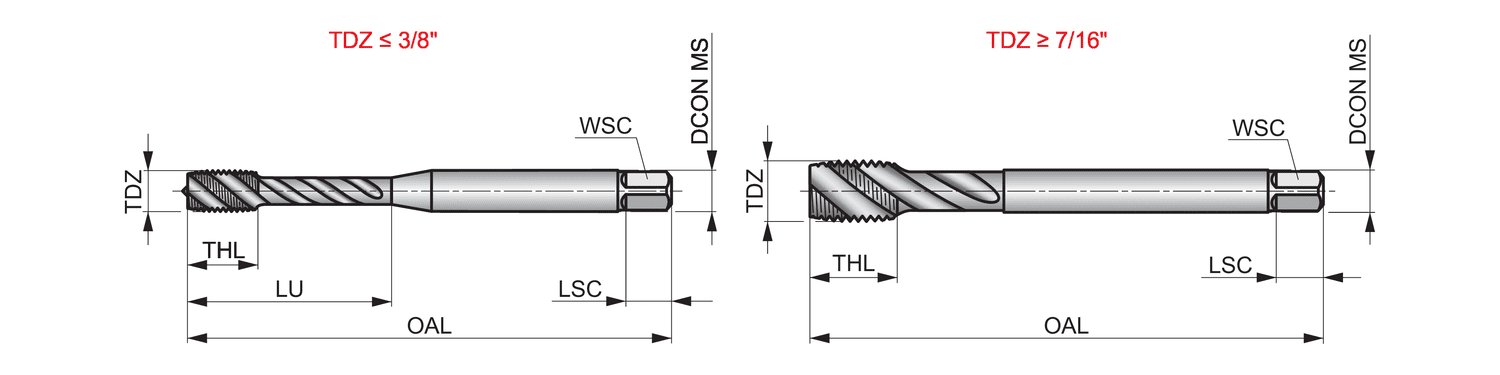

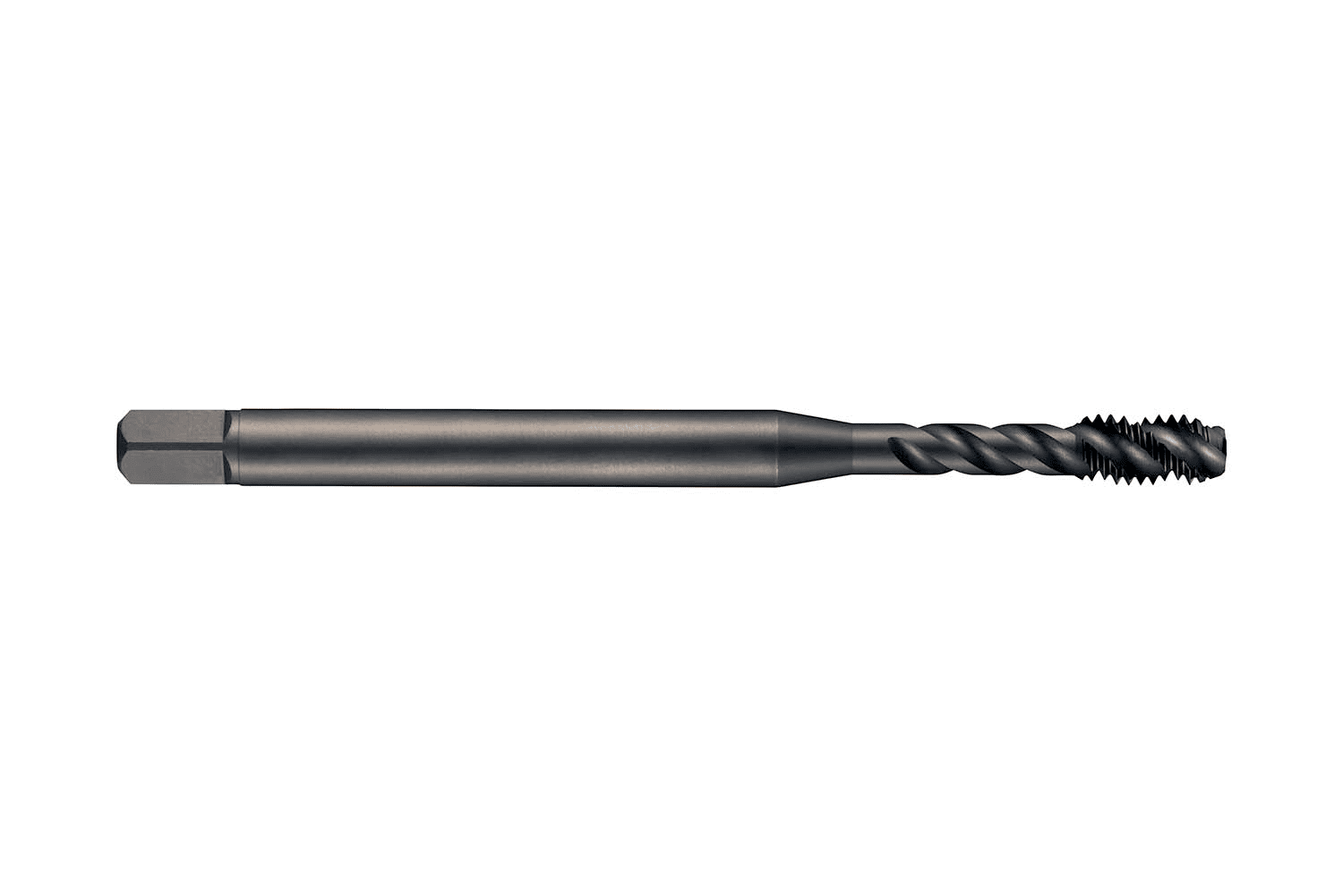

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 12 with 24 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications
- Product Name ISO: EX2112-24
- Ordering Code ANSI:EX2112-24
- EDP Number: 0150467
- Coating: Steam Tempered
- Material Code (BMC): HSS-E-PM
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 6 |
| Overall Length (Mm.) | 80 |
| Usable Length (Mm.) | 30 |
| Thread Dia. (In.) | 0.216 |
| Threads Per Inch | 24 |
| Connection Diameter (In.) | 0.2362 |
| Overall Length (In.) | 3.1496 |
| Material Code | HSS-E-PM |
| Coating | Steam Tempered |
| Shank | Cylindrical Shank with Square |
| Flute Count | 3 |
| Tap Application | Blind Hole |
| Thread Form | UNC - Unified Coarse |
| Flute Geometry | Spiral Flute Geometry |
| Cutting Direction | Right |
| Thread Diameter Size | 12 |
