Double-sided negative turning insert, triangular with inscribed circle diameter of 12.7mm, 4.76mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SF with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 -P15/M01 -M15/K05 -K20/S01 -S15 and H01 -H15, for fine to medium machining of steels, stainless-steels, cast-irons, super-alloys and hardened materials
- Product Name ISO: TNMG 220404E-SF:T6310
- Ordering Code ANSI: TNMG 431-SF:T6310
- EDP Number: 7763107
- Coating: T6310
- Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 5.16 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.118 |
| Insert Geometry | Negative |
| Coating | T6310 |
There are no reviews yet
Customers who bought this item also bought
Turning Insert - Negative - DNMG 431-NF:T6310
$12.12 excl tax
Turning Insert - Positive - TCGT 32.51-SF3:T6310
$13.83 excl tax
Turning Insert - Positive - TCGT 21.50.5-SF3:T8415
$12.15 excl tax
Turning Insert - Positive - TCGT 21.51-SF3:T8415
$11.47 excl tax
New
Insert FLG-2062L-CB AC50C
$26.43 excl tax
New
Insert NG3125LK KCU25B NG-K
$29.25 excl tax
New
Insert NG3047LK KC5025 NG-K
$32.31 excl tax
New

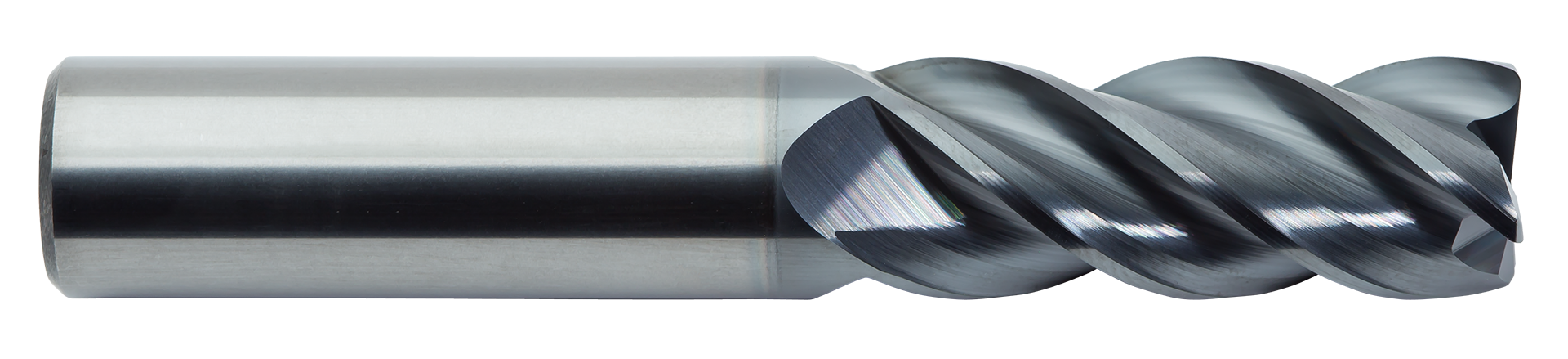

Mill 1/2x1x3 5F
