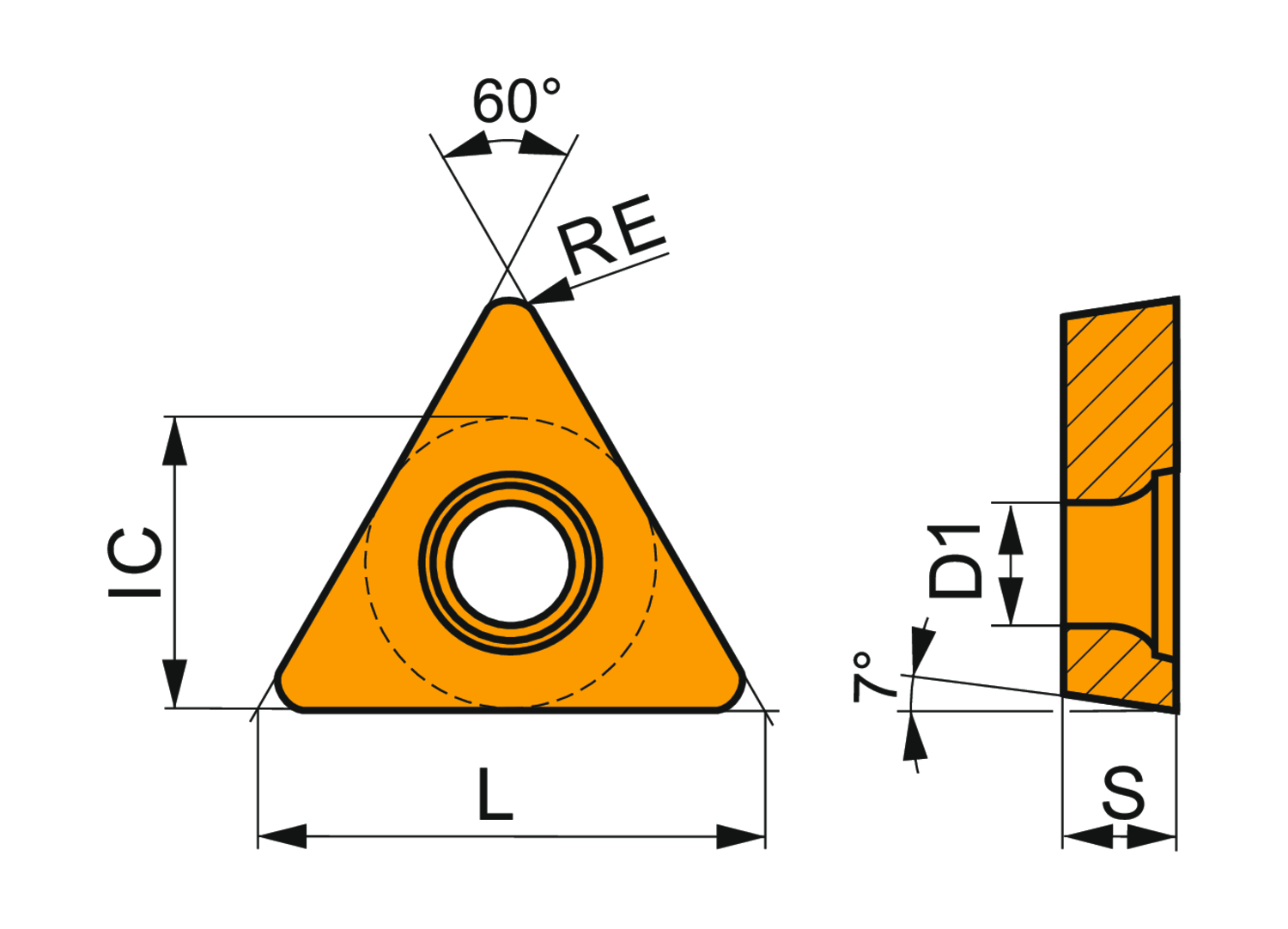

Single-sided positive turning insert, triangular with 7° clearance, inscribed circle diameter of 3/8", 5/32" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker SF3, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01 - M15/N05 - N20 and S01 - S15, for fine to medium machining of stainless-steels, non-ferrous metals and super-alloys
- Product Name ISO: TCGT 16T304E-SF3:T6310
- Ordering Code ANSI: TCGT 32.51-SF3:T6310
- EDP Number: 7168585
- Coating: T6310
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2.5 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 4.4 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 4.22 |
| Max Depth of Cut (In.) | 0.098 |
| Insert Geometry | Positive |
| Coating | T6310 |
