Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 1/4", 3/32" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NF2, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M30, for fine to medium machining of stainless-steels
- Product Name ISO: CCMT 060204E-NF2:T9325
- Ordering Code ANSI: CCMT 21.51-NF2:T9325
- EDP Number: 7167452
- Coating: T9325
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 2 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6.35 |
| Insert Thickness (Mm.) | 2.38 |
| Max Depth of Cut (In.) | 0.079 |
| Insert Geometry | Positive |
| Coating | T9325 |
There are no reviews yet
Customers who bought this item also bought
Insert Screw C03509-T15P
$8.50 excl tax
Turning Insert - Negative - DNMG 432-NM:T8430
$12.50 excl tax
Double sided Grooving and Turning insert - GL3-D300M02-GM:G8330
$20.22 excl tax
Insert V84 NV AC50E
$26.41 excl tax
New
Insert GL3-S300M02-PM:H07
$9.10 excl tax
New
Insert ADKT12T3PDER45
$21.83 excl tax
Insert DNMG 332-NF IC907 ISO Turn Neg
$11.02 excl tax
Insert XCMT080304TC TT9030
$20.12 excl tax
Insert TAG N3C IC808 Tang Grip
$16.54 excl tax
Insert FLT-3R AC3R
$23.17 excl tax

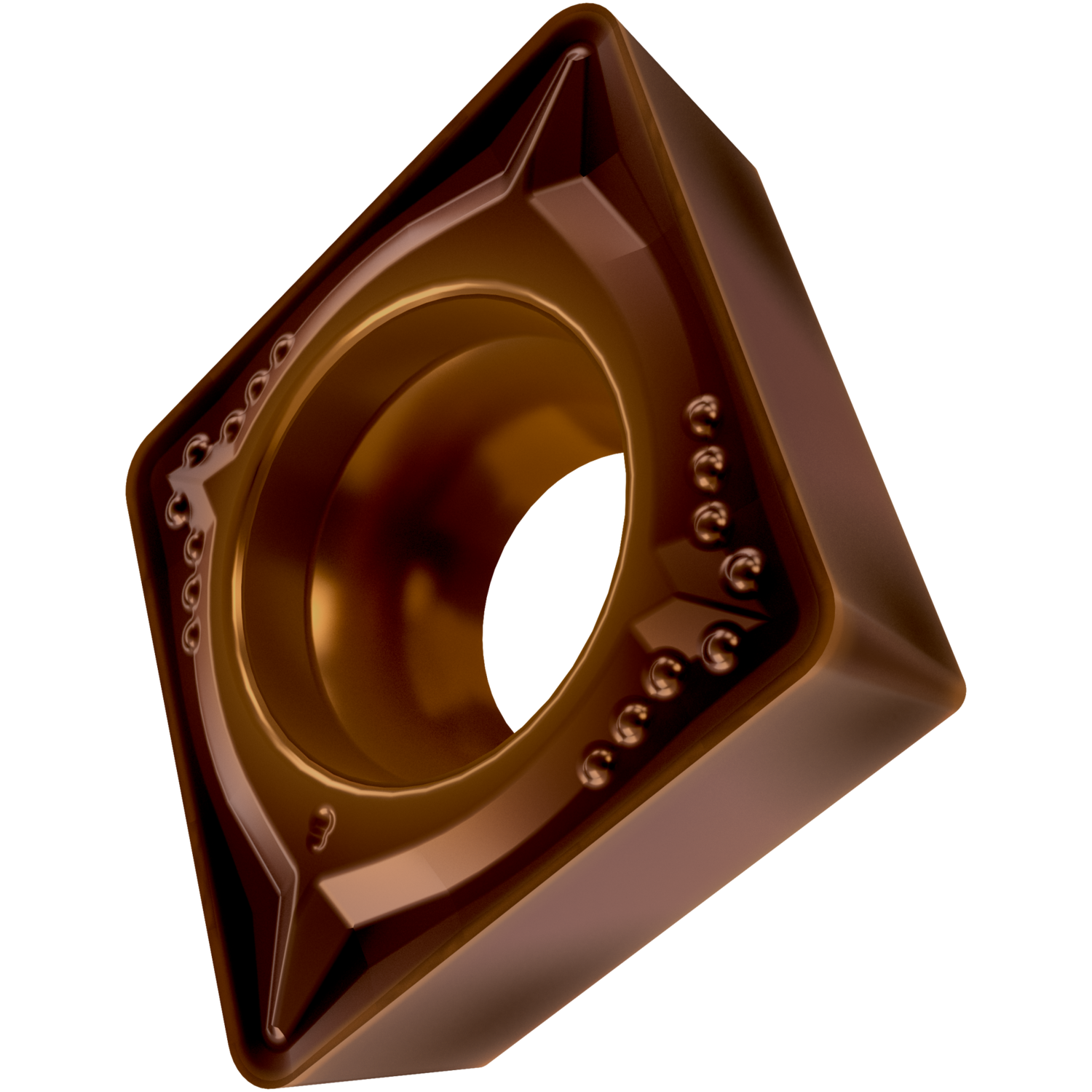

Turning Insert - Positive - CCMT 32.51-FM:T8430
