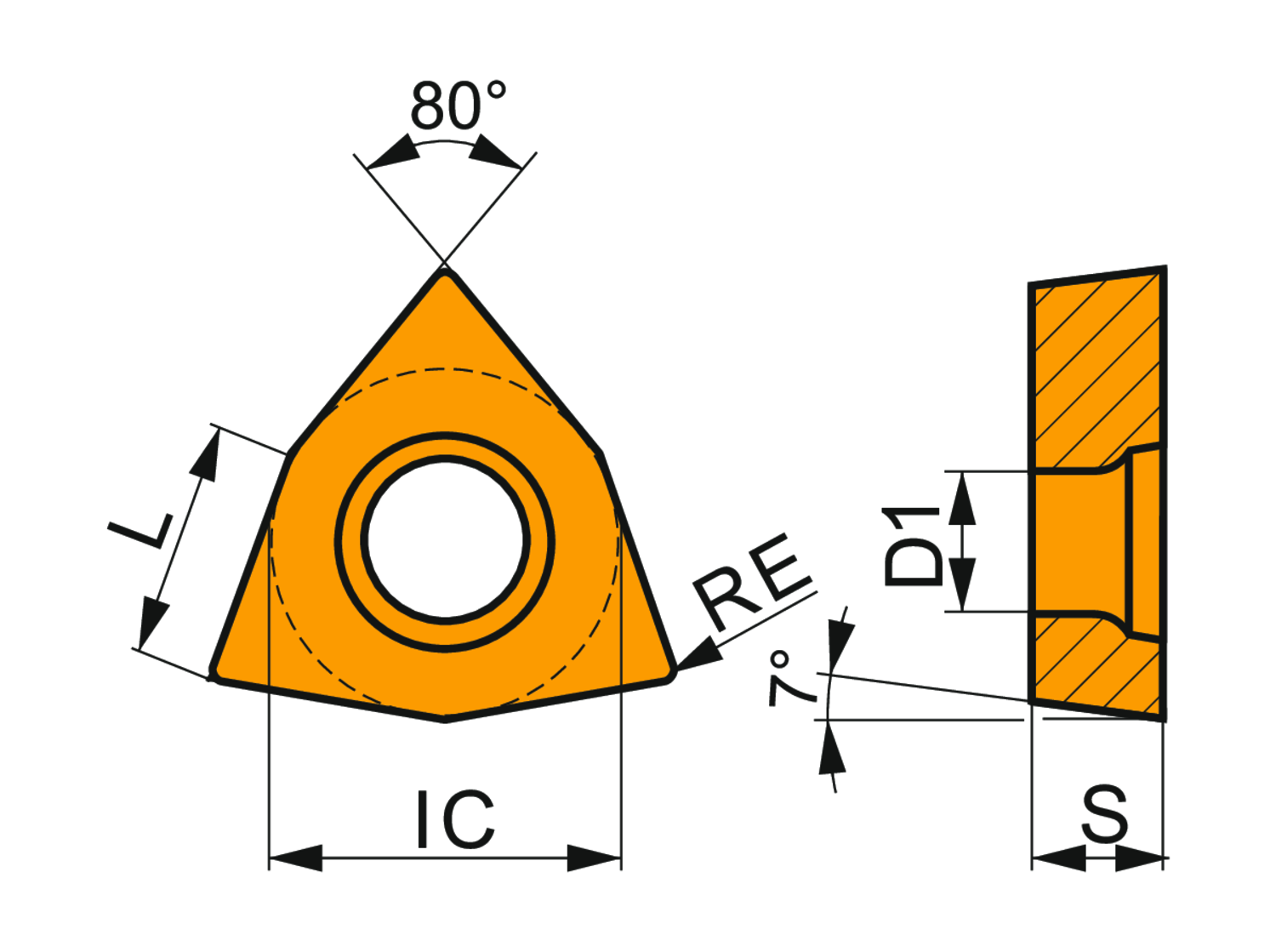

Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 5/32", 1/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- G, chip-breaker FF2, in grade HF7, an uncoated fine grained WC-Co carbide within ISO range K10-K25, for fine to medium machining of cast-irons
- Product Name ISO: WCGT 020104E-FF2:HF7
- Ordering Code ANSI: WCGT 1.211-FF2:HF7
- EDP Number: 6756167
- Coating: HF7
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1.4 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.2 |
| Inscribing Circle Dia. (Mm.) | 3.97 |
| Insert Thickness (Mm.) | 1.59 |
| Max Depth of Cut (In.) | 0.055 |
| Insert Geometry | Positive |
| Coating | HF7 |
