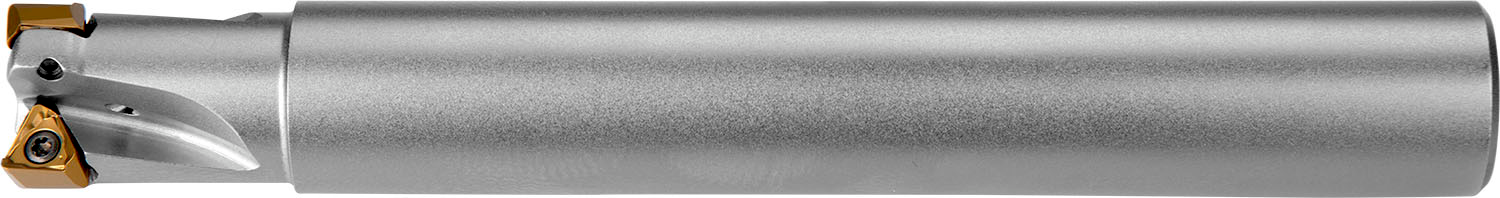

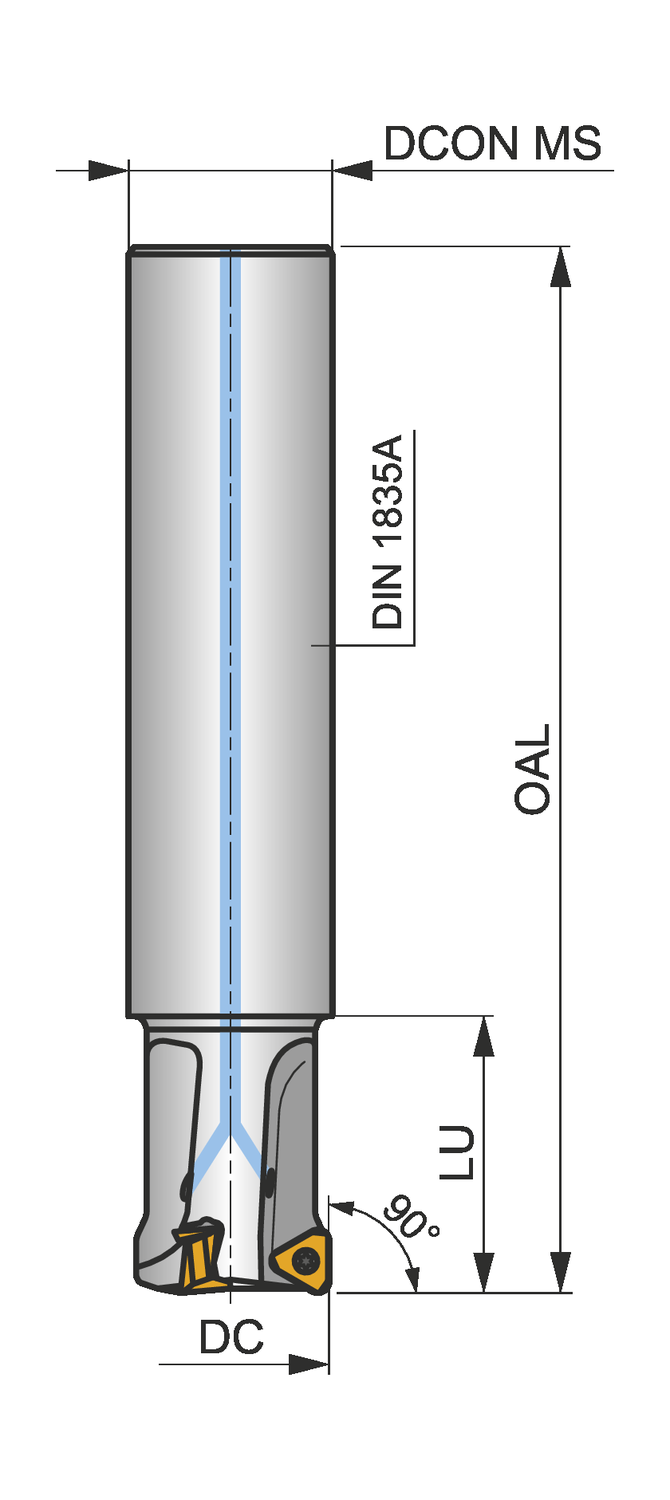

Shoulder face mill with double negative geometry which utilises 4 off TNGX 1004.. double-sided inserts, cutting diameter 1.000'' with 90° approach angle and 1.000'' parallel shank according to DIN 1835A, 1.339'' functional and 6.693'' overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''

• Product Name ISO: 100A4R140C100-ISTN10-C
• Ordering Code ANSI: 100A4R140C100-ISTN10-C
• EDP Number: 7276934
• Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
