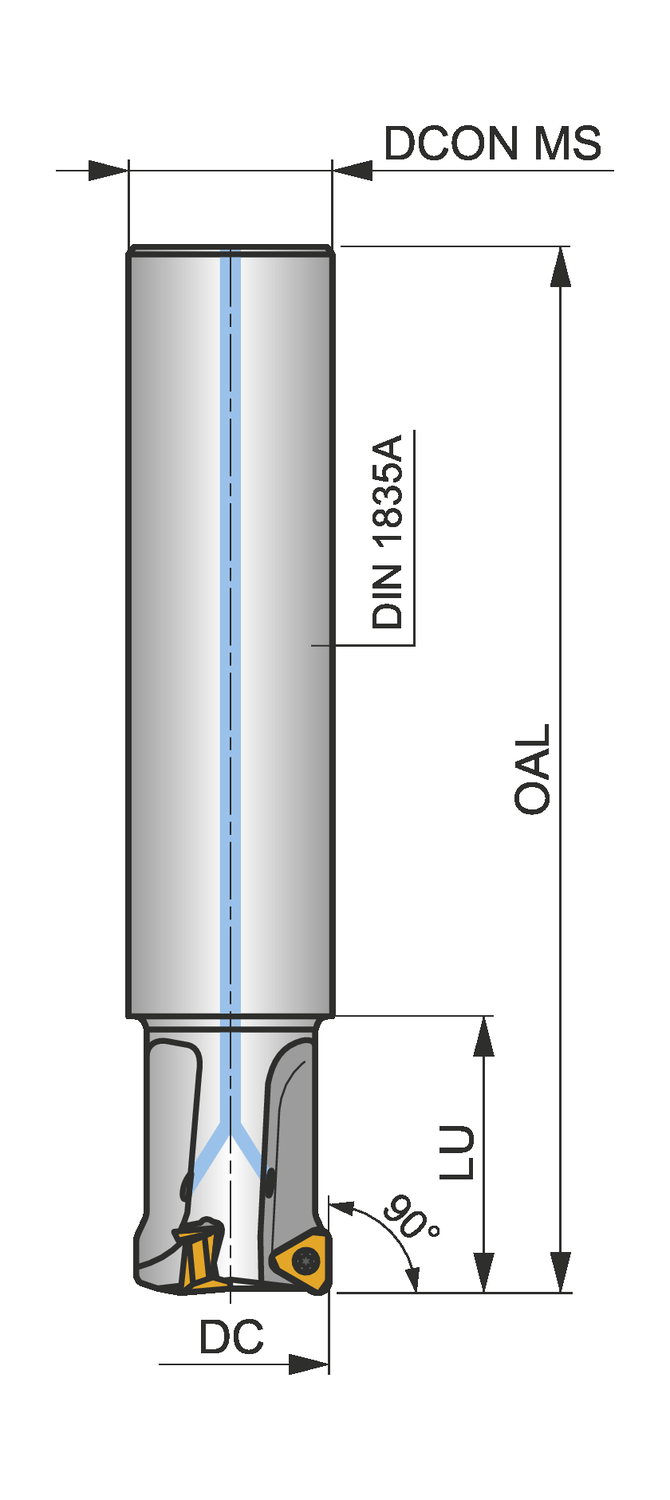

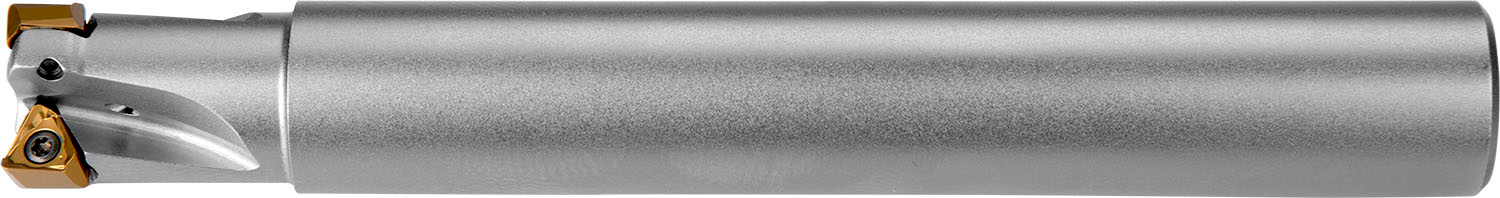

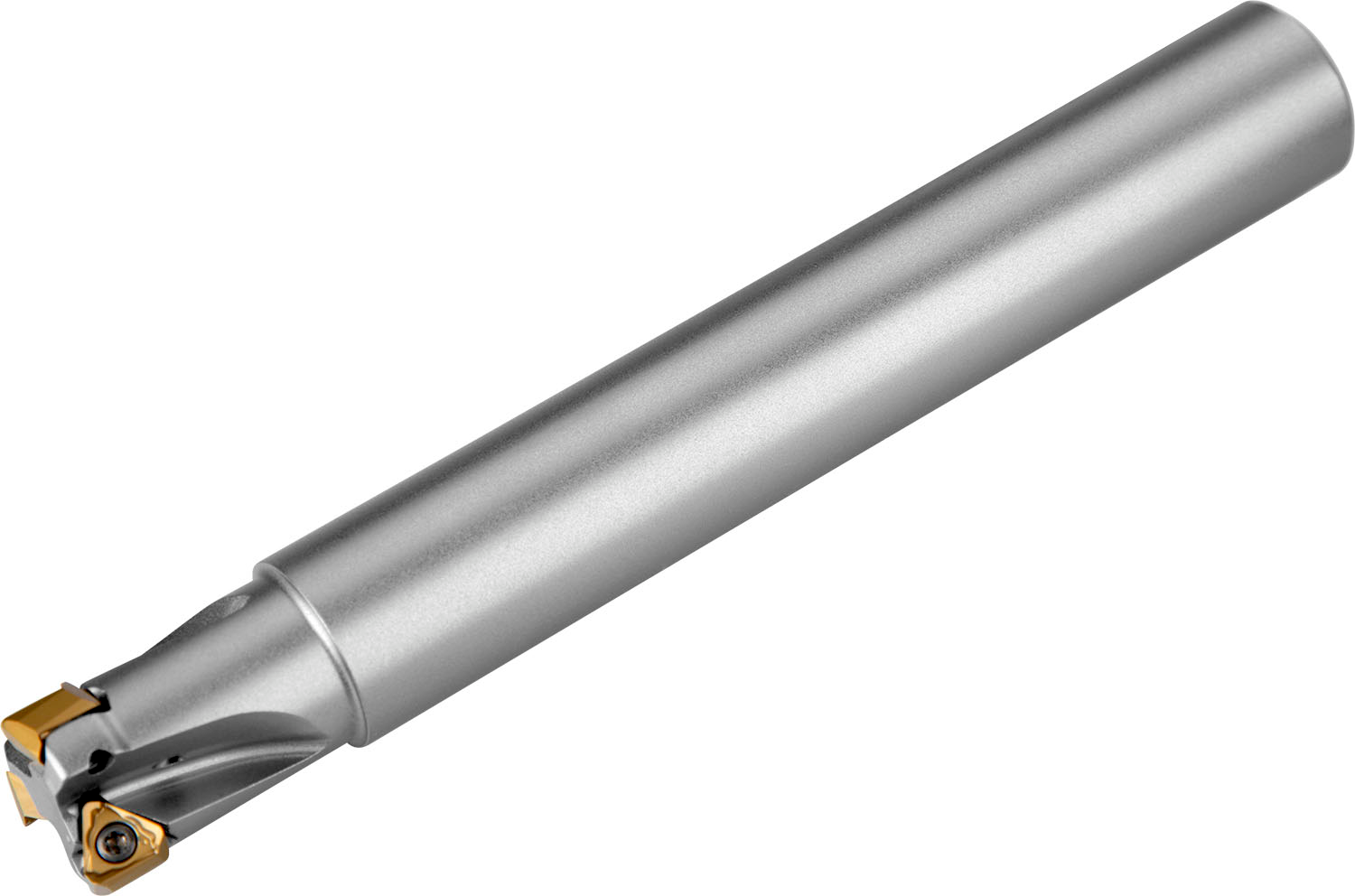

Shoulder face mill with double negative geometry which utilises 5 off TNGX 1004.. double-sided inserts, cutting diameter 1.250'' with 90° approach angle and 1.250'' parallel shank according to DIN 1835A, 1.457'' functional and 7.677'' overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197''
- Product Name ISO: 125A5R146C125-ISTN10-C
- Ordering Code ANSI: 125A5R146C125-ISTN10-C
- EDP Number: 7276936
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 31.8 |
| Cutting Diameter (In.) | 1.25 |
| Connection Diameter (Mm.) | 31.8 |
| Overall Length (Mm.) | 195 |
| Connection Diameter (In.) | 1.25 |
| Overall Length (In.) | 7.677 |
| Shank | Cylindrical Shank DIN 1835A |
| Cutting Direction | Right |
| Clamping Type | Screw Clamping Through Hole |
| Cooling | 1 |
